Arm Rest: Service and Repair

Console Armrest Replacement - Front Floor





REMOVAL PROCEDURE

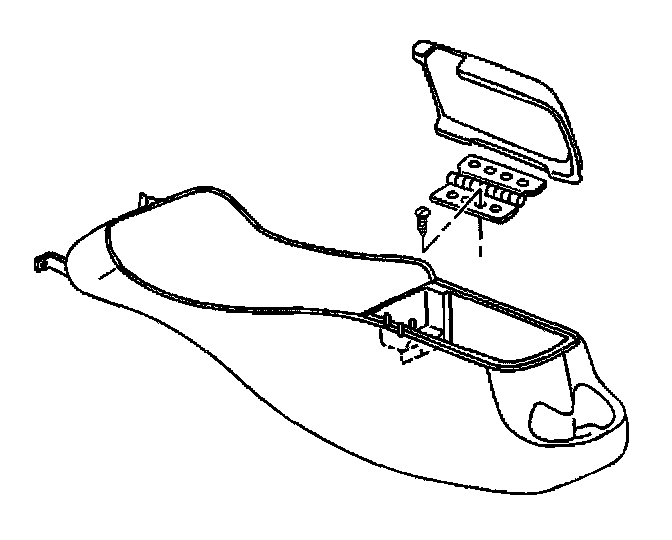

1. Open the console armrest door.
2. Remove the console armrest door bolts.
3. Remove the console armrest from the vehicle.

INSTALLATION PROCEDURE
1. Install the console armrest door to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the console armrest door bolts.

Tighten
Tighten the console armrest door bolts to 2.0 N.m (18 lb in).

3. Close the console armrest door.
