System Test - Antenna

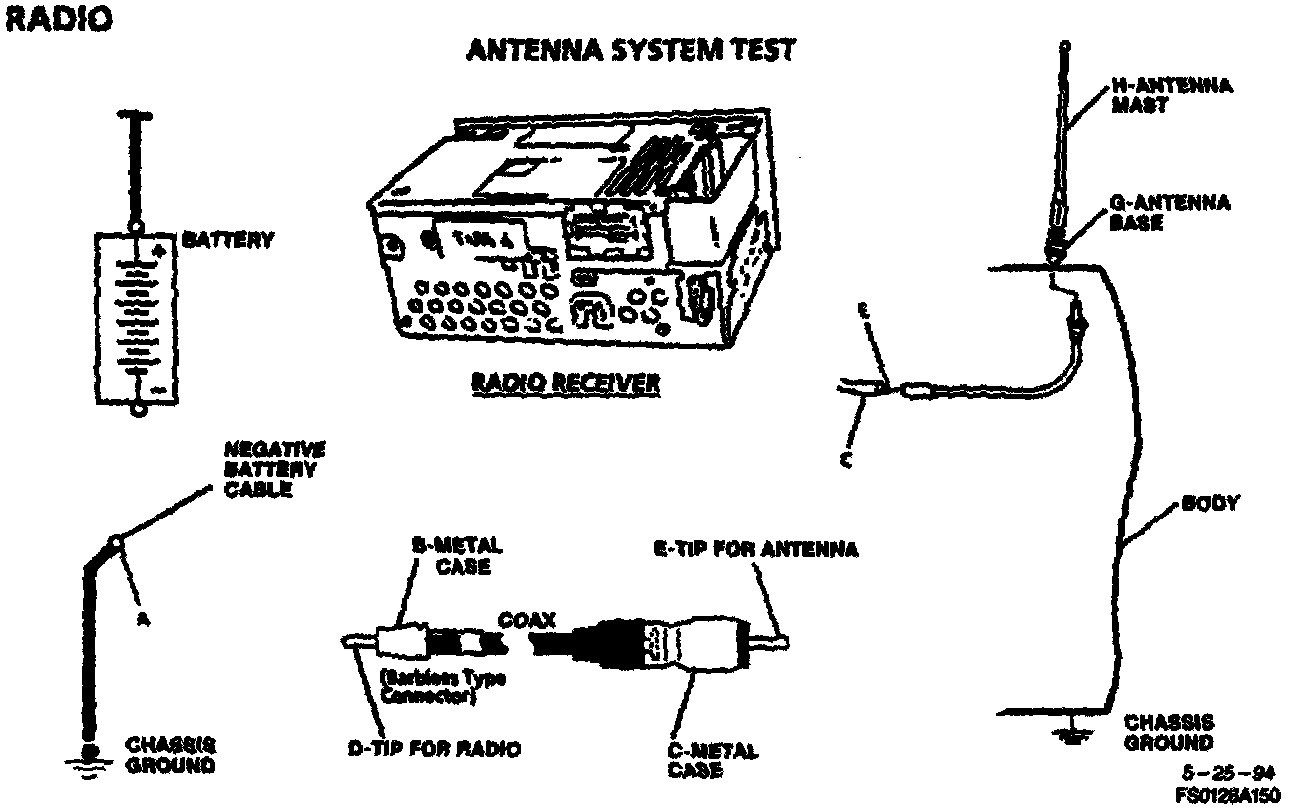

Antenna System Test:

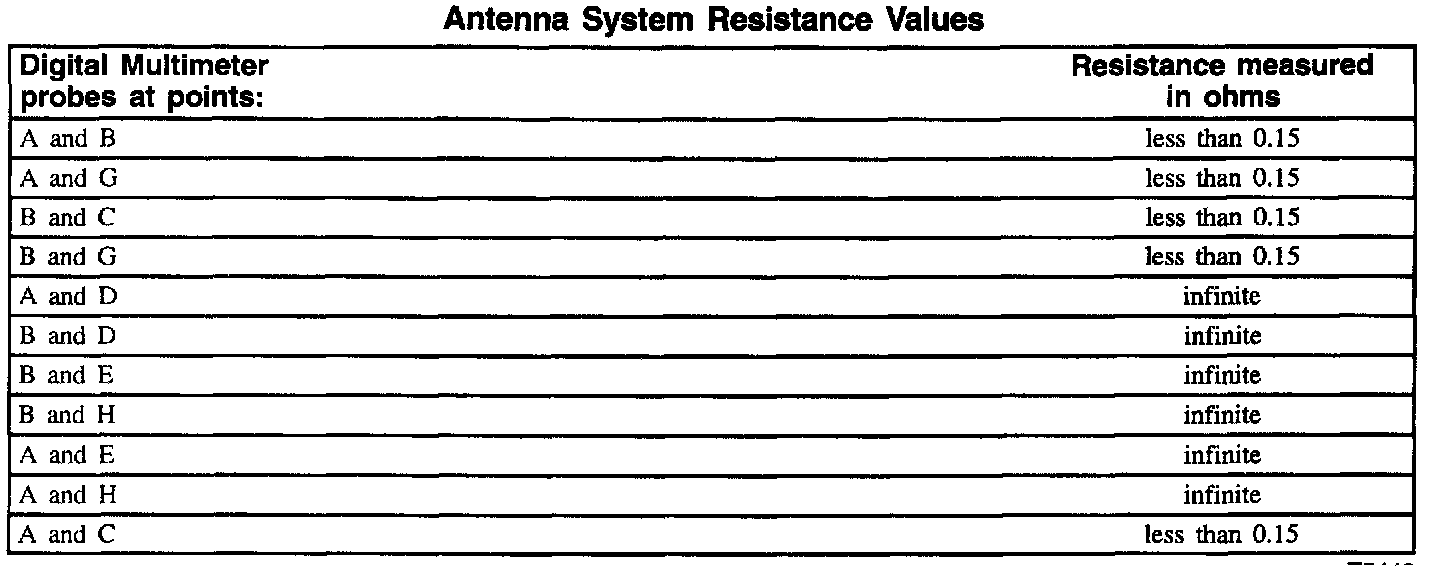

Antenna System Resistance Values (Part 1 Of 2):

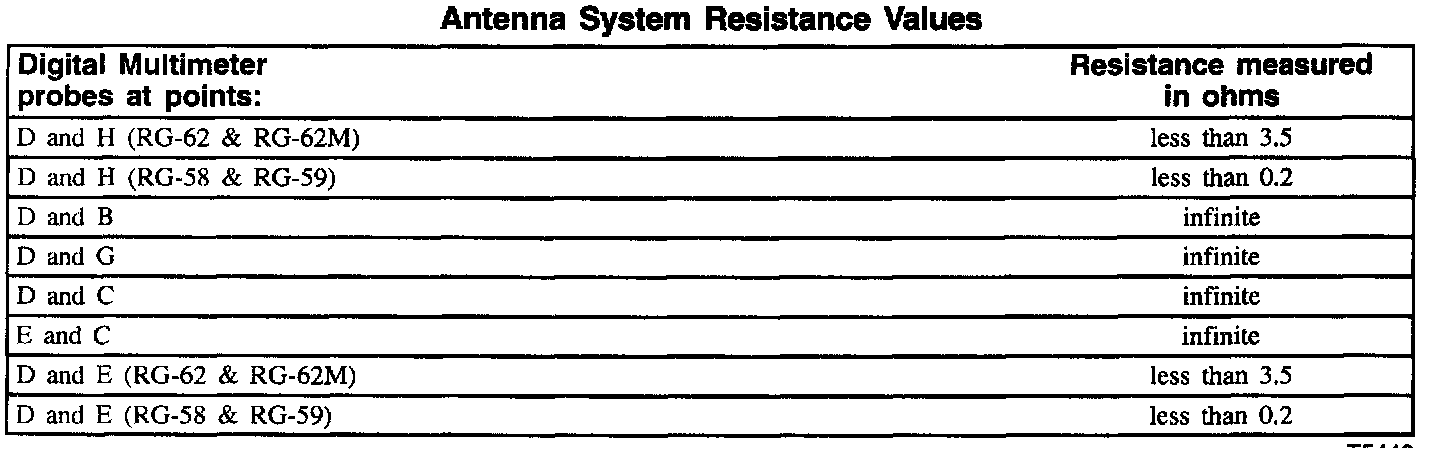

Antenna System Resistance Values (Part 2 Of 2):




Important: Before measuring tile resistance of the antenna, remove the negative lead of the Battery and zero the meter before taking measurements. When checking resistance, cautiously wiggle the antenna mast, lead-in tip and cable. The readings listed below should always he obtained. If readings are other than those listed, some portion of the lead-in is intermittent and the lead-in should be replaced.

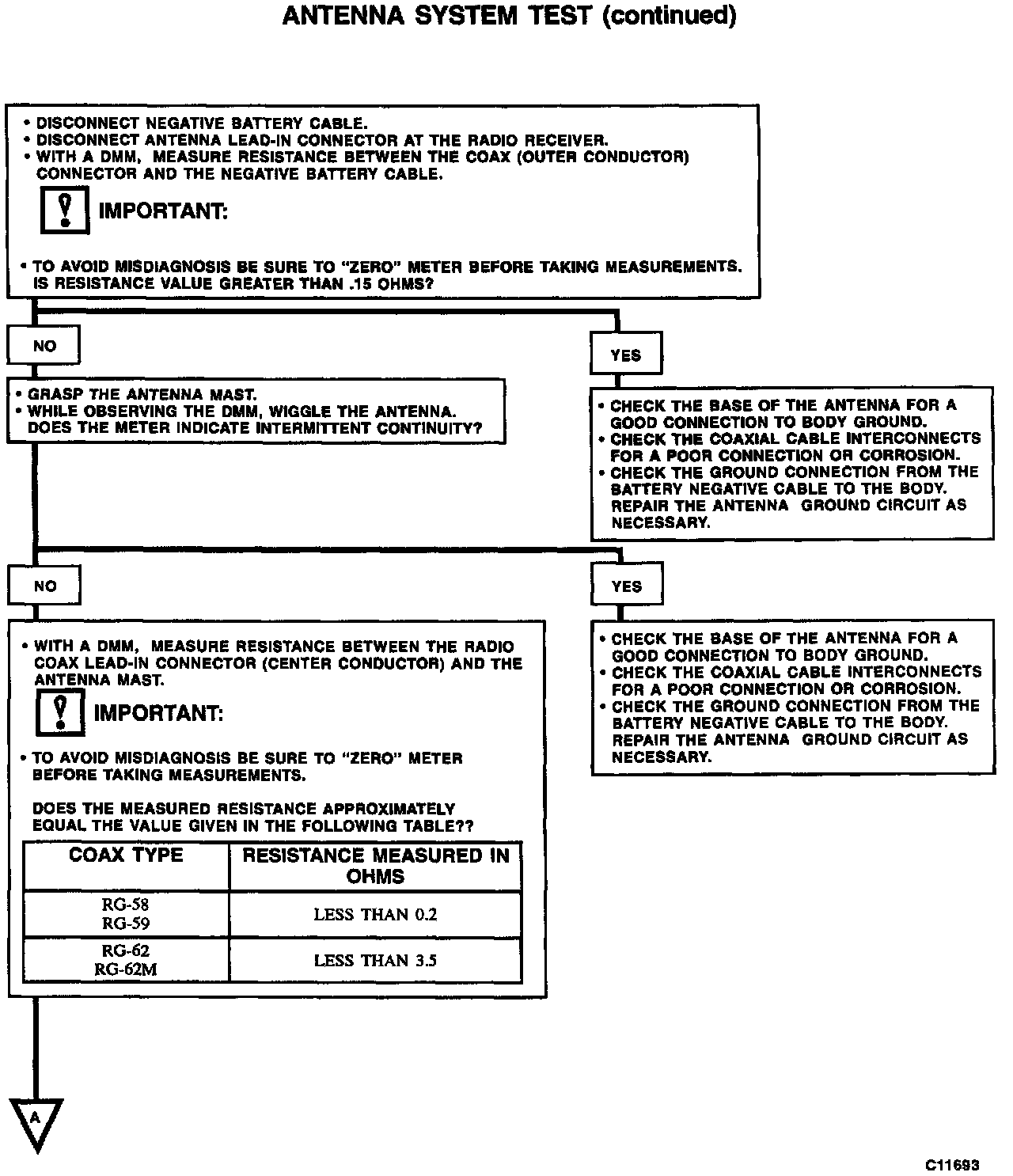

Antenna System Test (Part 1 Of 2):

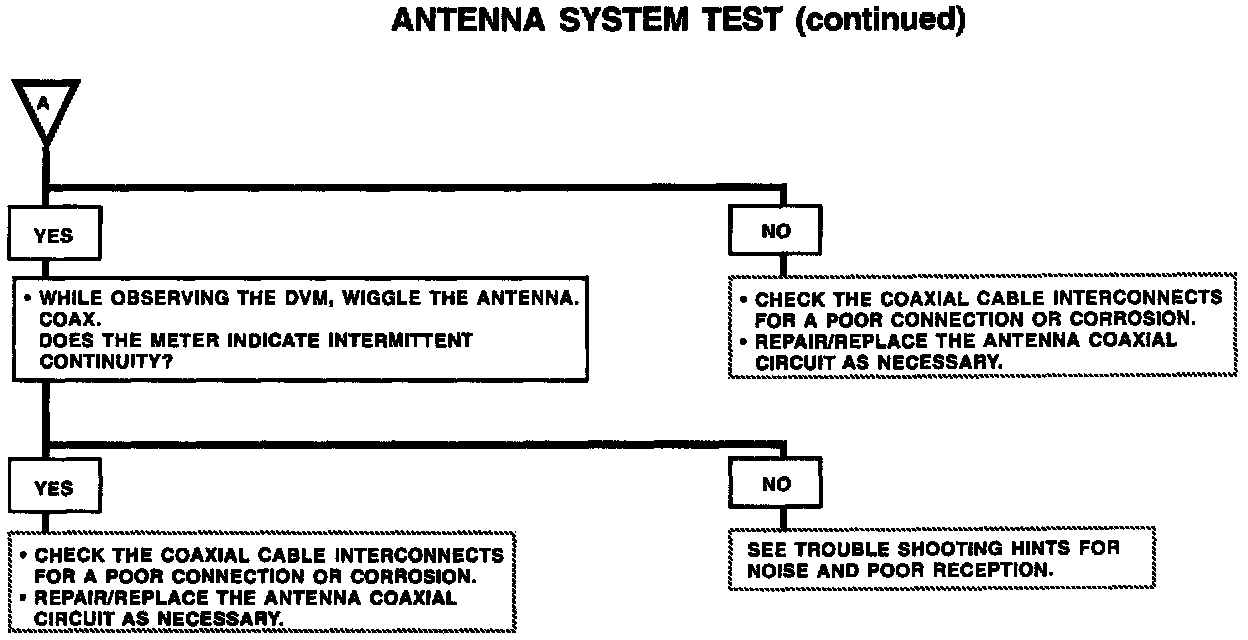

Antenna System Test (Part 2 Of 2):
