Front

REMOVAL PROCEDURE

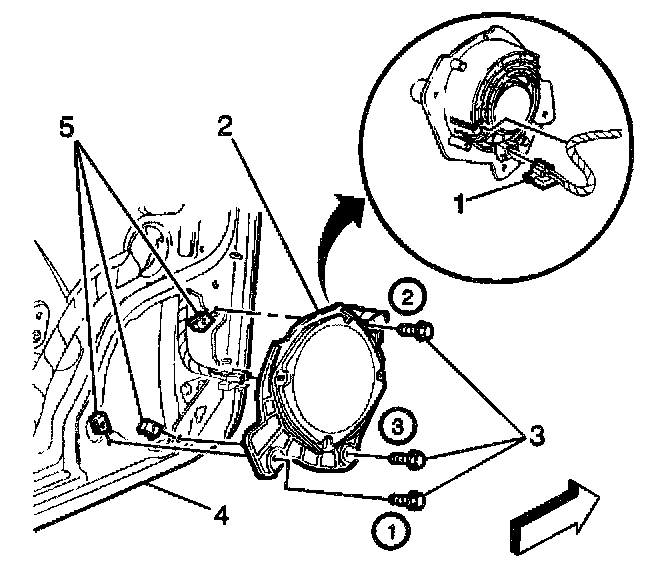

1. Remove the front side door trim.
2. Remove the front side door water deflector, as needed.
3. Remove the door speaker bolts (3).
4. Gently pull the door speaker (2) forward to access the connector (1).
5. Disconnect the door speaker electrical connector (1).
6. Remove the side door speaker (2) from the vehicle.

INSTALLATION PROCEDURE
1. Connect the side door speaker electrical connector (1).
2. Install the side door speaker (2) to the door.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the side door speaker bolts (3).

Tighten
Tighten the side door speaker bolts (3) to 2.5 N.m (22 lb in).

4. Install the front side door water deflector.
5. Install the front side door trim.
