Coupe

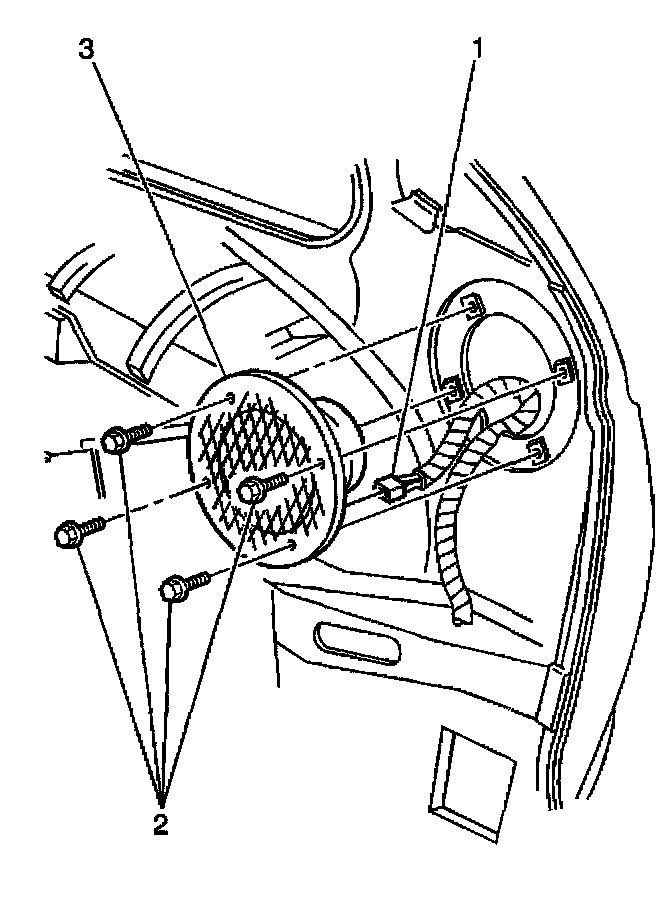

REMOVAL PROCEDURE
1. Remove the quarter inner trim finishing panel.
2. Remove the radio quarter speaker bolts (2).
3. Gently pull the speaker (3) forward to access the connector (1).
4. Disconnect the radio quarter speaker electrical connector (1).
5. Remove the radio quarter speaker (3) from the vehicle.

INSTALLATION PROCEDURE
1. Connect the radio quarter speaker electrical connector (1).
2. Install the speaker (3) into the opening in the sail panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the radio quarter speaker bolts (2).

Tighten
Tighten the radio quarter speaker bolts (2) to 1.9 N.m (17 lb in).

4. Install the quarter inner trim finishing panel.
