Convertible

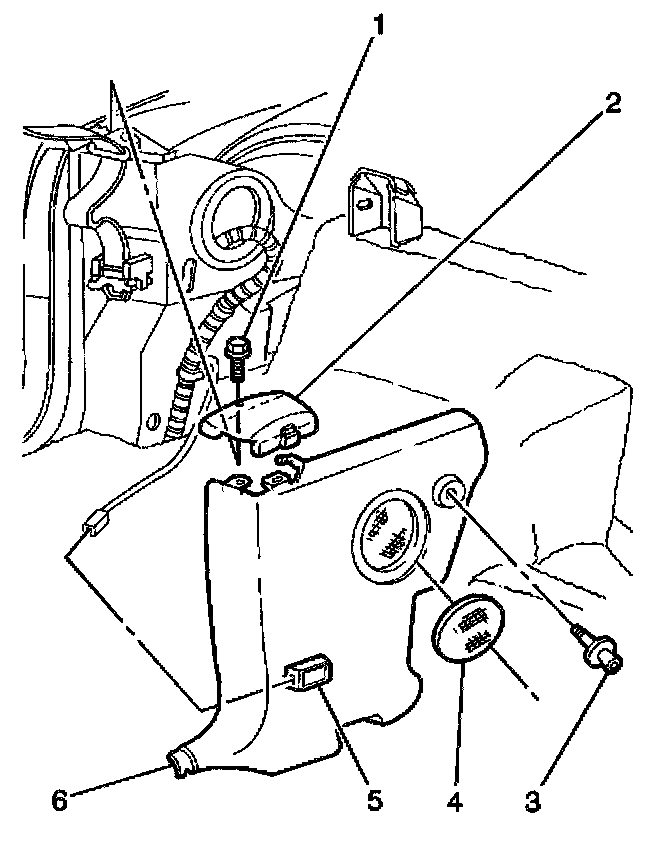

REMOVAL PROCEDURE
1. Remove the trim finishing panel (6).
2. Use a soldering iron to melt the heat stakes that attach the speaker grille (4).
3. Remove the speaker grille (4) from the trim finishing panel (6).

INSTALLATION PROCEDURE
1. Install the speaker grille (4) to the trim finishing panel (6).
2. Insert the heat stakes through the holes in the trim finishing panel (6).
3. Use a soldering iron to melt the heat stakes.
4. Press the melted heat stakes flat using a suitable surface.
5. Install the trim finishing panel (6).
