Coupe

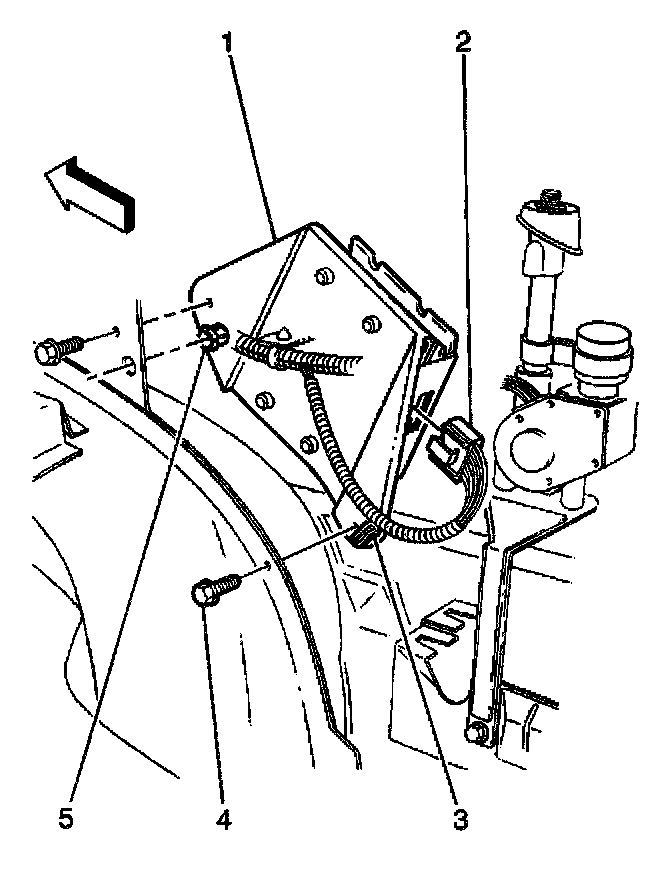

REMOVAL PROCEDURE
1. Remove the right quarter inner rear trim finishing panel.
2. Disconnect the amplifier electrical connector (2).
3. Remove the radio amplifier bolts (4).
4. Squeeze the pin (5) together.
5. Unsnap the pin (5) from the quarter inner panel.
Lift amplifier clip (3) off wheelhouse flange.
6. Remove the amplifier (1).

INSTALLATION PROCEDURE
1. Install the amplifier (1).
2. Place clip (3) over wheelhouse flange.
Snap pin (5) into hole in quarter inner panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the amplifier bolts (4).

Tighten
Tighten the amplifier bolts (4) to 4 N.m (35 lb in).

4. Connect the amplifier electrical connector (2).
5. Install the right quarter inner trim finishing panel.
