Convertible

REMOVAL PROCEDURE
1. Remove the right quarter inner trim finish panel.

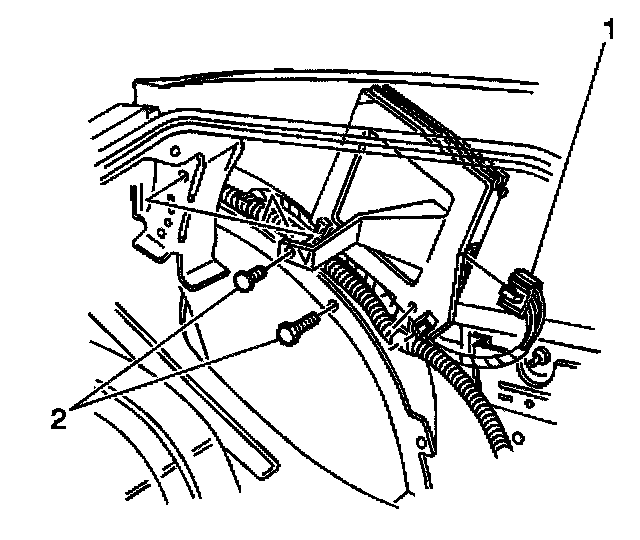

2. Disconnect the amplifier electrical connector (1).
3. Remove the amplifier bolts (2).
4. Remove the amplifier, lift the amplifier up to remove the tabs from the wheelhouse flange.

INSTALLATION PROCEDURE
1. Install the amplifier, place the tabs over the wheelhouse flange.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the amplifier bolts (2).

Tighten
Tighten the amplifier bolts (2) to 4 N.m (35 lb in).

3. Connect the amplifier electrical connector (1).
4. Install the right quarter inner trim finish panel.
