Fixed Antenna Mast Replacement

REMOVAL PROCEDURE

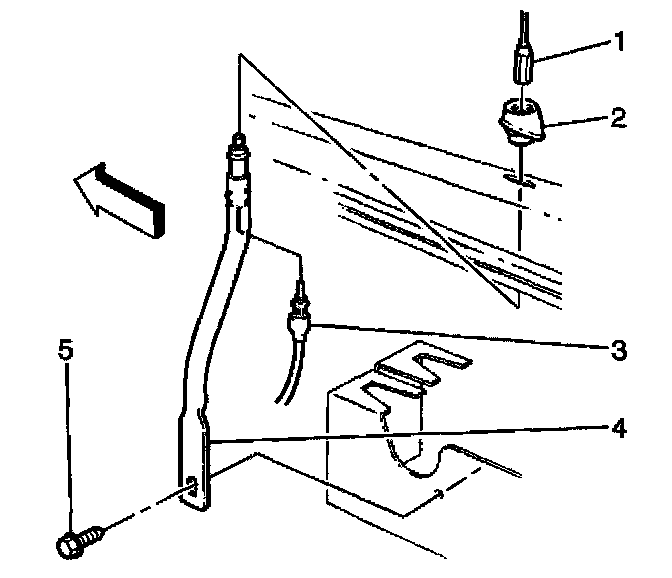

1. Unscrew the antenna mast (1) from the antenna bracket (4).
2. Remove the antenna from the vehicle.

INSTALLATION PROCEDURE
1. Install the antenna to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the antenna mast (1) to the antenna bracket (4).

Tighten
Tighten the antenna mast (1) to 5 N.m (44 lb in).
