Cooling Fan Table #3

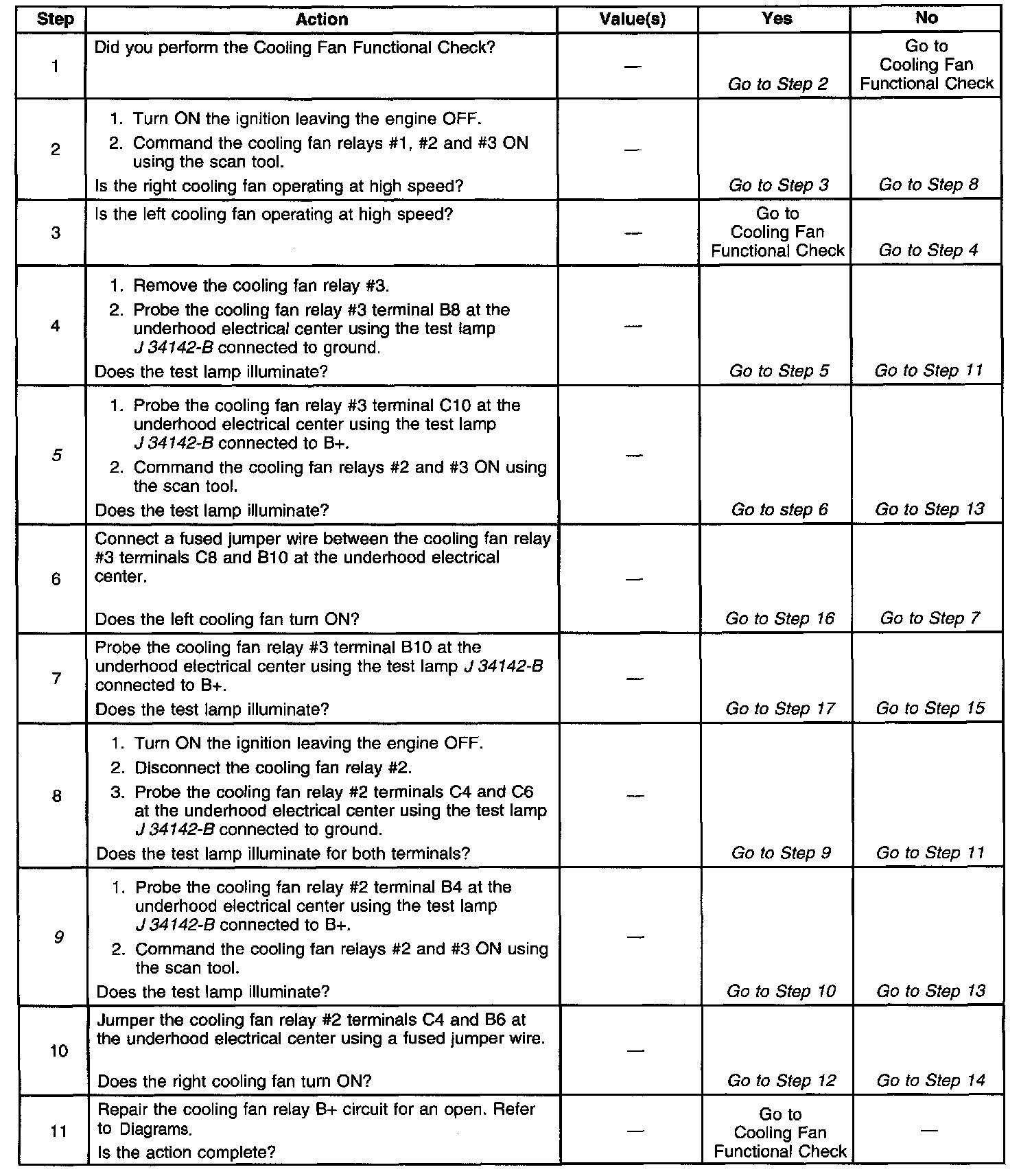

1 Of 2:

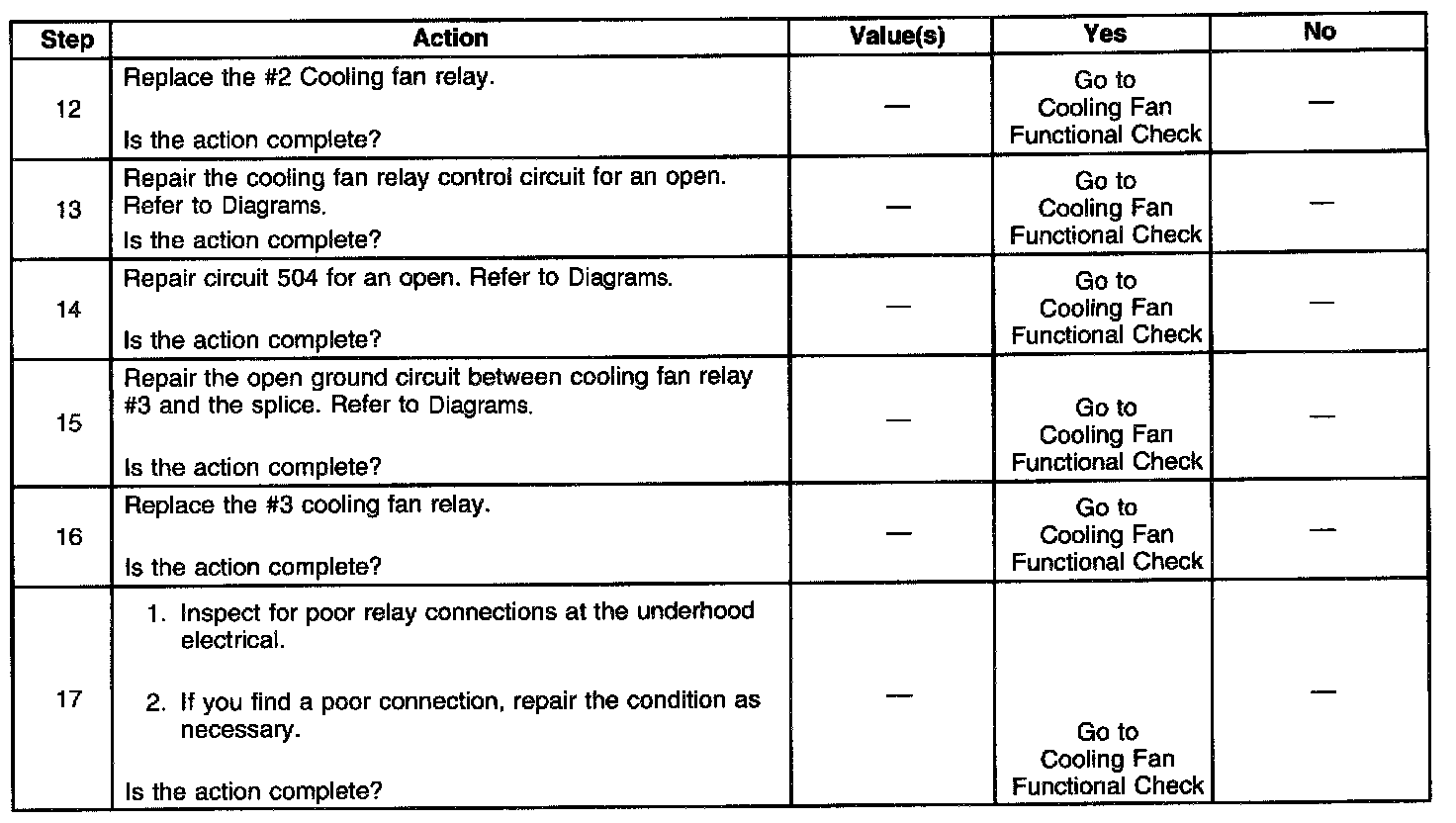

2 Of 2:

Test Description

The numbers below refer to the step numbers in the diagnostic table.

5. This step tests the cooling tan relay # 3 control circuit.
9. This step tests the cooling fan relay # 2 control circuit.
