Cooling Fan Table #2

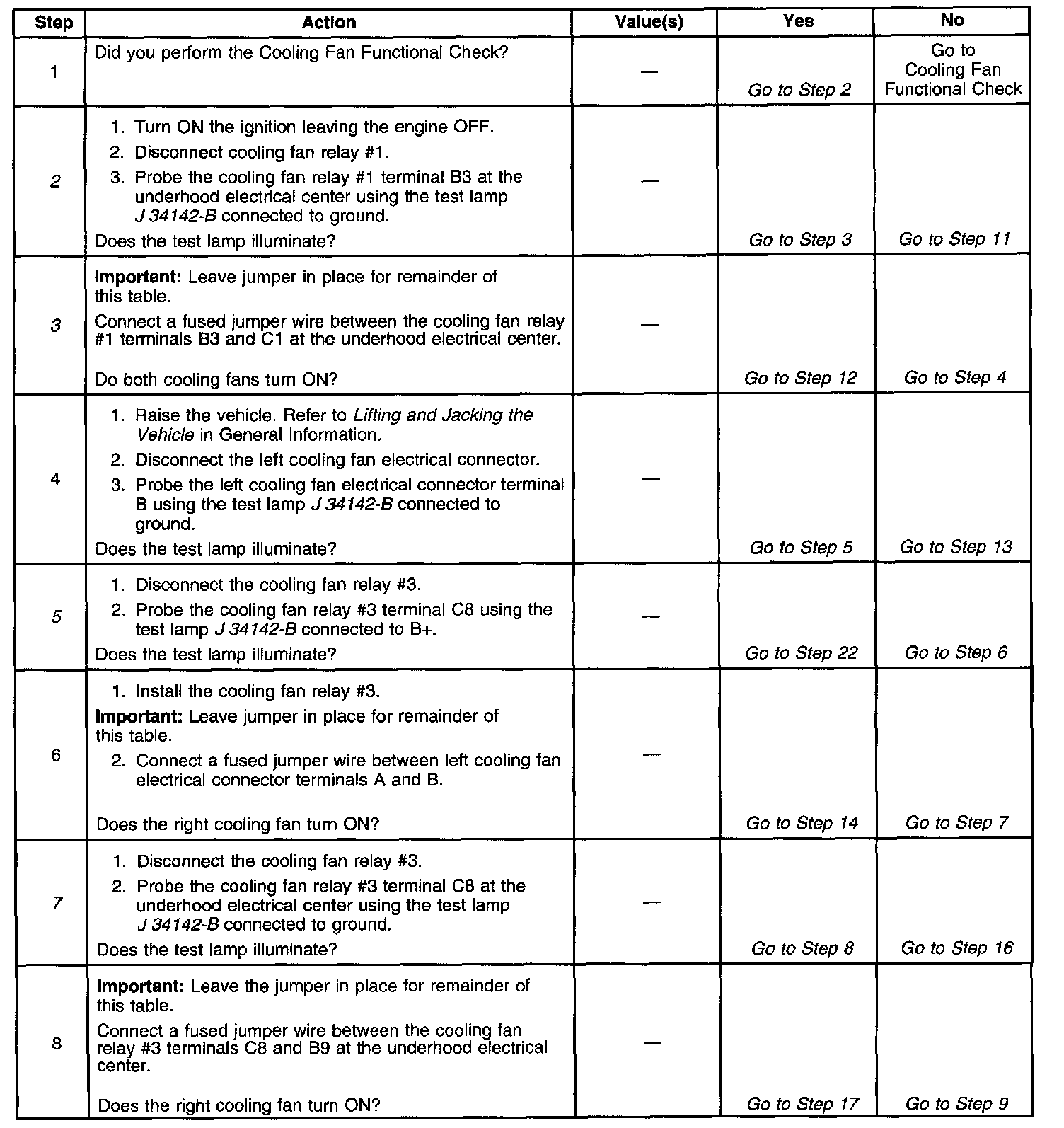

1 Of 2:

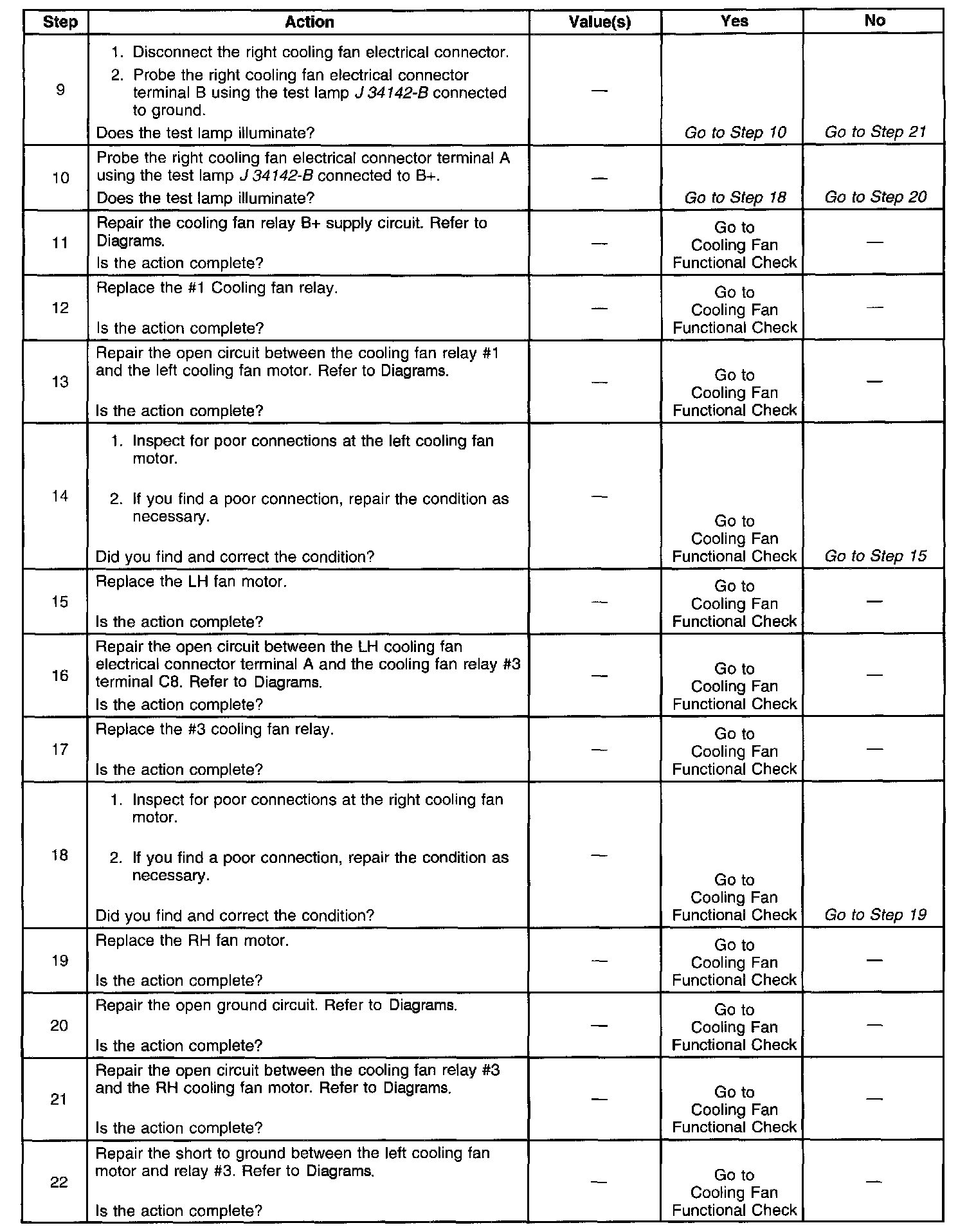

2 Of 2:

Test Description

The numbers below refer to the step numbers in the diagnostic table.

2. Any test that requires probing a component or a component harness connector, use the Connector Test Adaptor Kit J 35616-A. Using this kit prevents damage to the harness connector terminals.

3. This step tests for an inoperative cooling fan relay.

5. This step tests for an open left cooling fan motor. When the left cooling fan terminals are connected, the right cooling fan should operate on high speed.

7. This step is testing for a short to ground between the left cooling fan motor and cooling fan relay # 3.
