Cooling Fan Table #1

Test Description

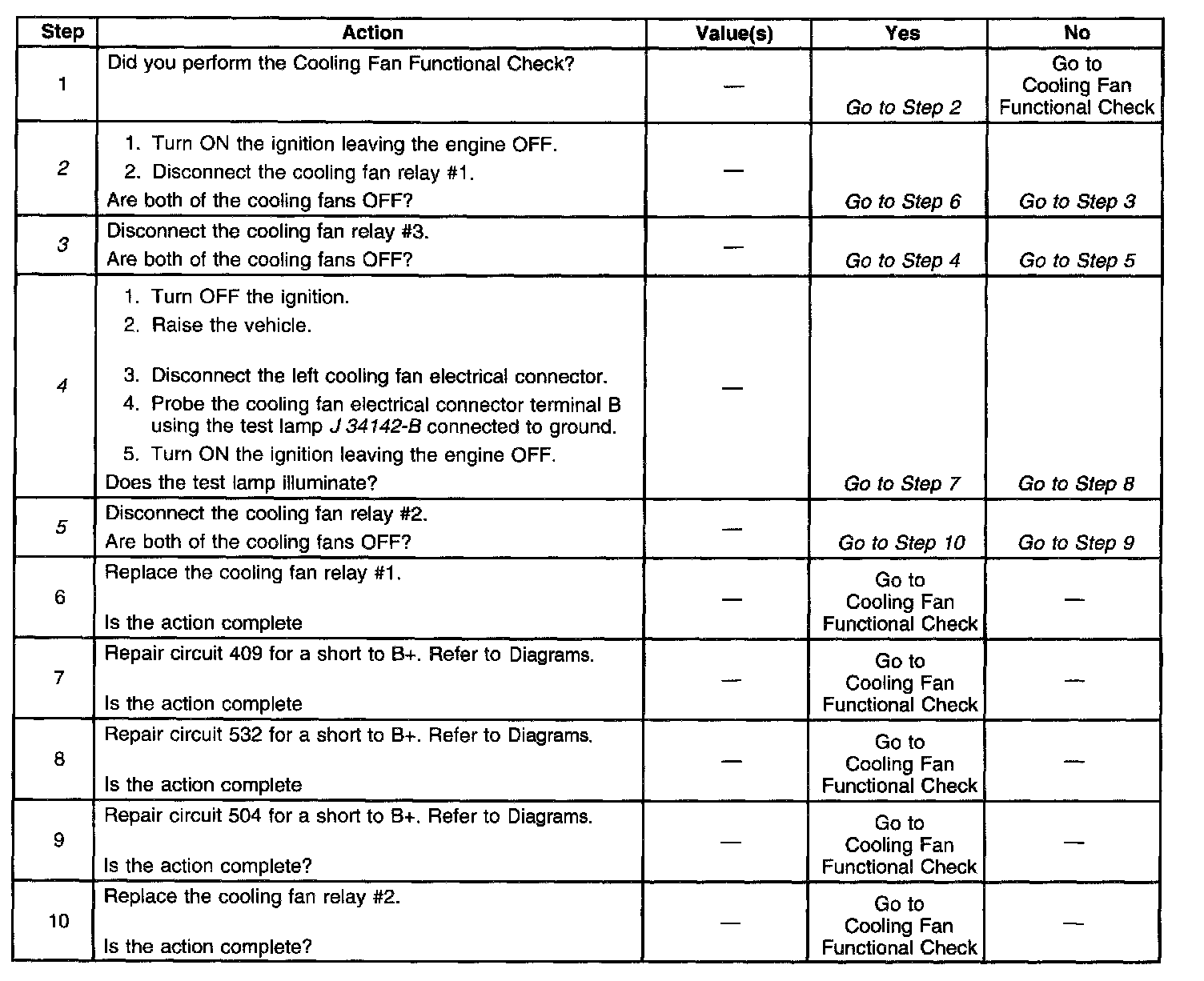

The numbers below refer to the step numbers in the diagnostic table.

2. This step determines if the cooling fan relay contacts are stuck closed.

3. This step determines if there is a short to voltage on circuit 532.

4. Any test that requires probing a component or a component harness connector, use the Connector Test Adaptor kit J 35616-A. Using this kit prevents damage to the harness connector terminals.

5. This step determines it the cooling fan relay contacts are stuck closed.
