P0602

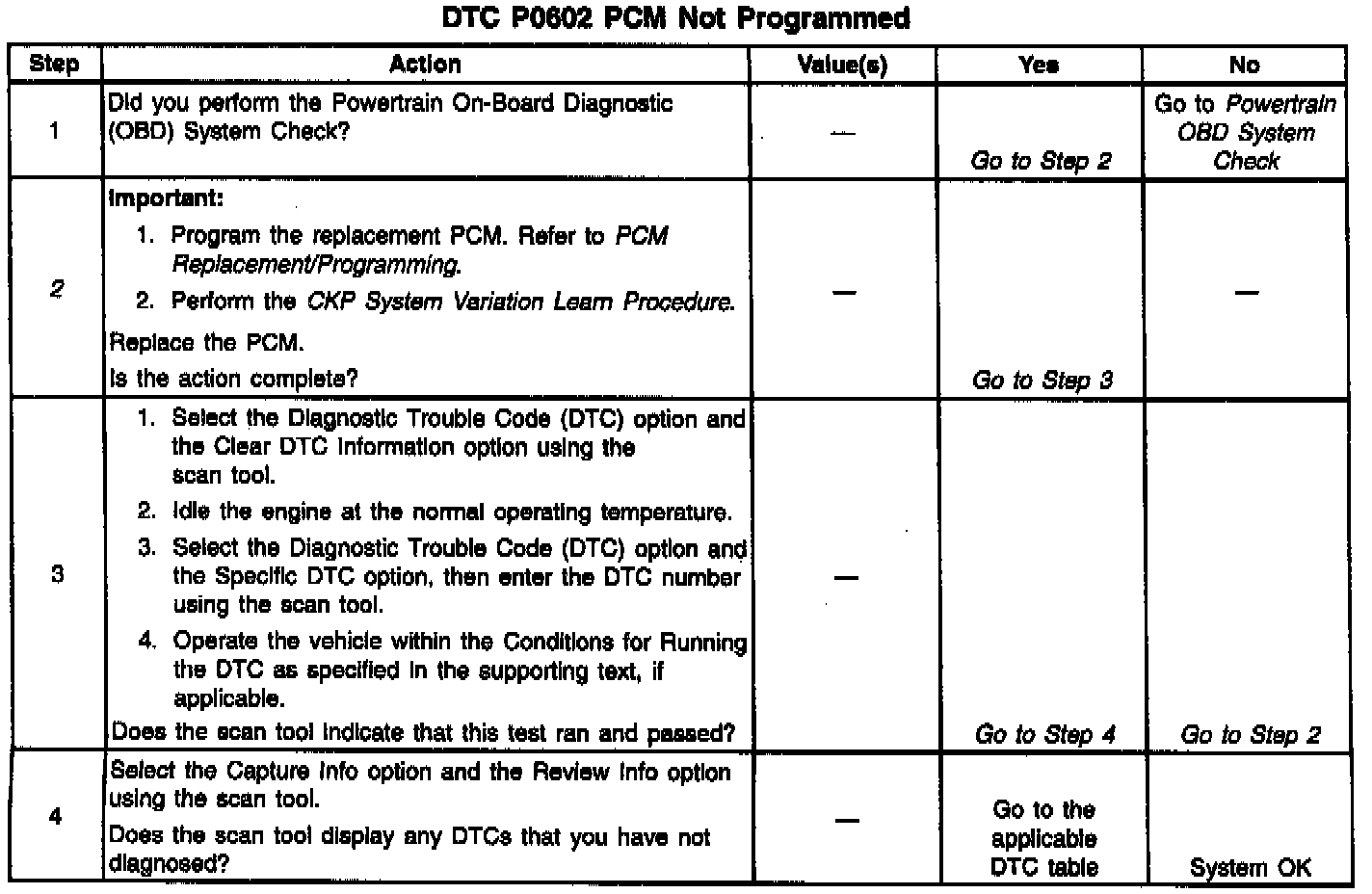

Diagnostic Chart:

CIRCUIT DESCRIPTION
This DTC indicates that the PCMs internal EEPROM is not flashed with any vehicle software. If you install a service PCM and do not flash the EEPROM, the engine will not run. This DTC indicates that an un4lashed PCM causes the engine cranks but will not run situation.

CONDITIONS FOR RUNNING THE DTC
The ignition switch is in the run position.

CONDITIONS FOR SETTING THE DTC
No software data is present in the PCM.

ACTION TAKEN WHEN THE DTC SETS
- The PCM illuminates the Malfunction Indicator Lamp (MIL) when the diagnostic runs and fails.
- The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Freeze Frame and/or the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The PCM turns the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.
- A last test failed (current DTC) clears when the diagnostic runs and does not fail.
- A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
- The PCM battery voltage is interrupted.
- Use a scan tool in order to clear the MIL/DTC.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
2. Replace the PCM even if this DTC exists only in history.
