P0507

1 Of 2:

2 Of 2:

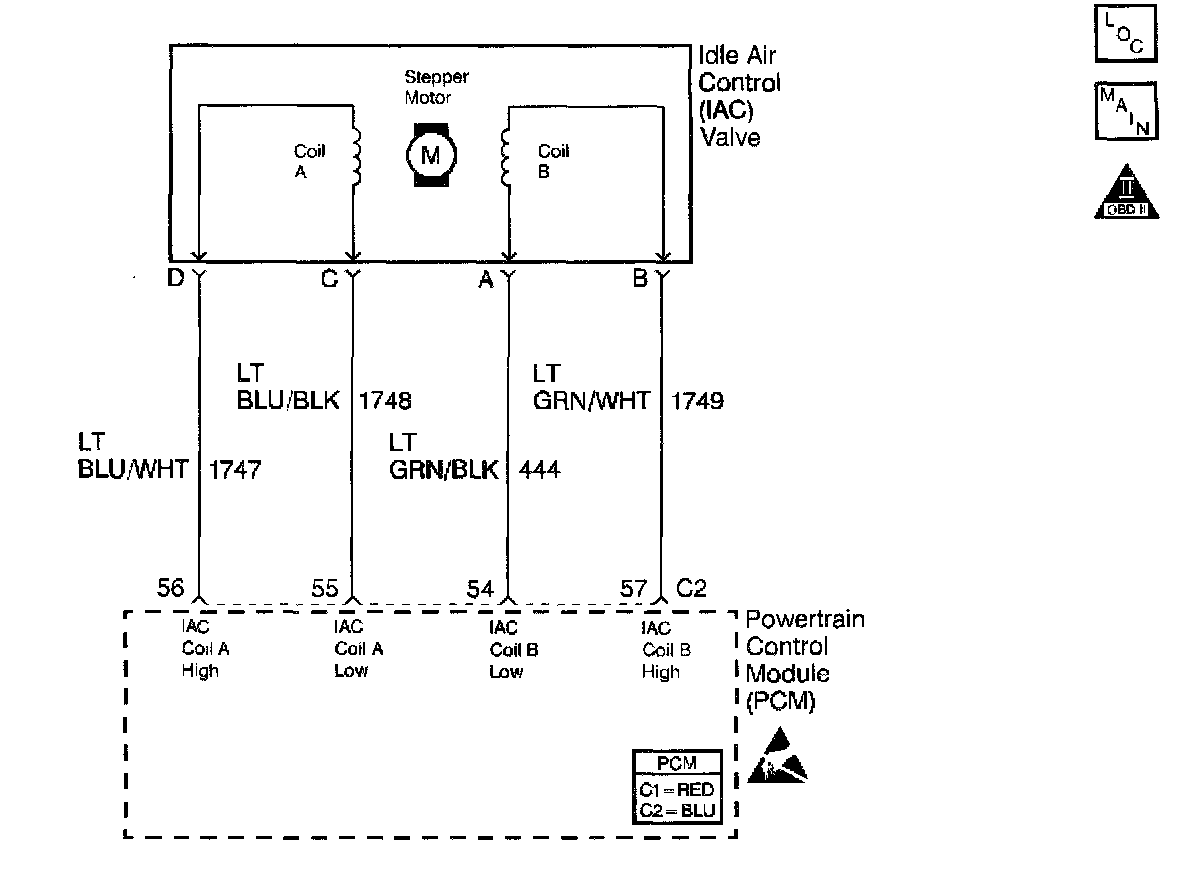

Circuit Description

The Idle Air Control valve is a PCM controlled stepper motor located on the throttle body. The stepper motor drives a valve pintle which protrudes into a passage that bypasses the throttle plates. The PCM commands the IAC valve pintle to extend to decrease the idle speed. The bypass air flow is reduced and the idle speed decreases as the pintle approaches its seat. The PCM retracts the IAC valve pintle away from its seat to increase the idle speed. The retracting of the IAC valve pintle allows more air to bypass the throttle plates. One of the PCMs uses for the AC system is to maintain a desired idle speed. This DTC sets when the PCM detects an engine speed outside of the IAC's range of control.

Conditions for Running the DTC

- DTCs P0101, P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118, P0125, P0171, P0172, P0174, P0175, P0300, P0401, P0404, P0405, P0443, P0500-P0503, P1441 are not set.
- The engine run time is greater than 60 seconds.
- The engine coolant temperature is greater than 60°C (140°F).
- The intake air temperature is greater than -10°C (14°F).
- The barometric pressure is greater than 65 kPa.
- The ignition voltage is between 9.0 and 17.0 volts
- The vehicle speed is no more than 1 mph (1.6 km/h).

Conditions for Setting the DTC

- The actual idle speed is 200 RPM greater than the desired idle speed.
- All of the above conditions are present for 5 seconds.

Action Taken When the DTC Sets

- The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
- The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.

Conditions for Clearing the MIL/DTC

- The PCM turns the MIL OFF after three consecutive ignition cycles that the diagnostic runs and does not fail.
- A last test failed (current DTC) clears when the diagnostic runs and does not fail.
- A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
- Use a scan tool in order to clear the MIL/DTC.

Diagnostic Aids

Using Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can aid in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also aid determining how many ignition cycles the diagnostic reported a pass and/or a fail. Operate the vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed. For an intermittent, refer to Symptoms.

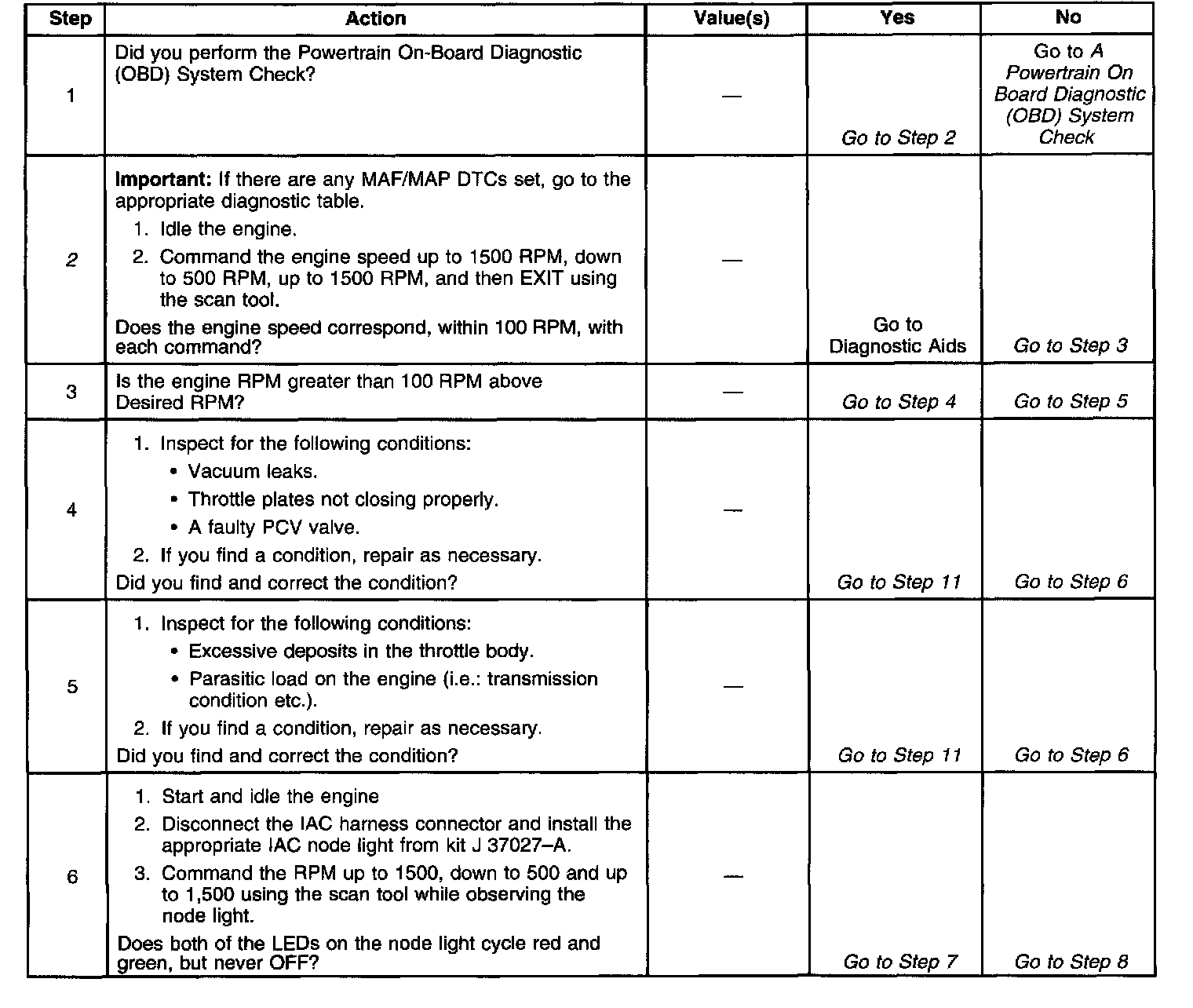

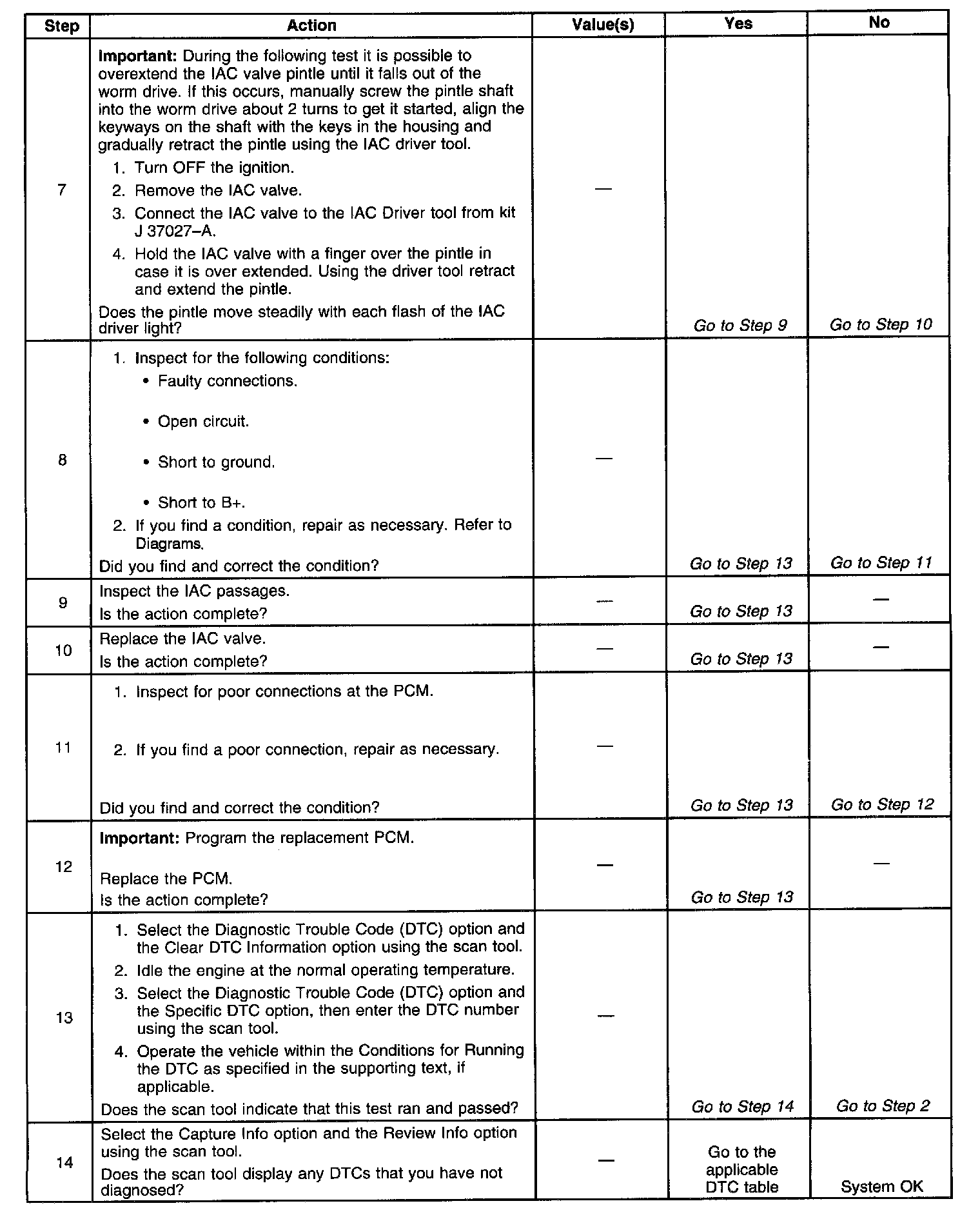

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2. This test determines whether or not the engine can achieve the commanded RPM, and if not, whether the RPM is too high or too low.
