DTC 35

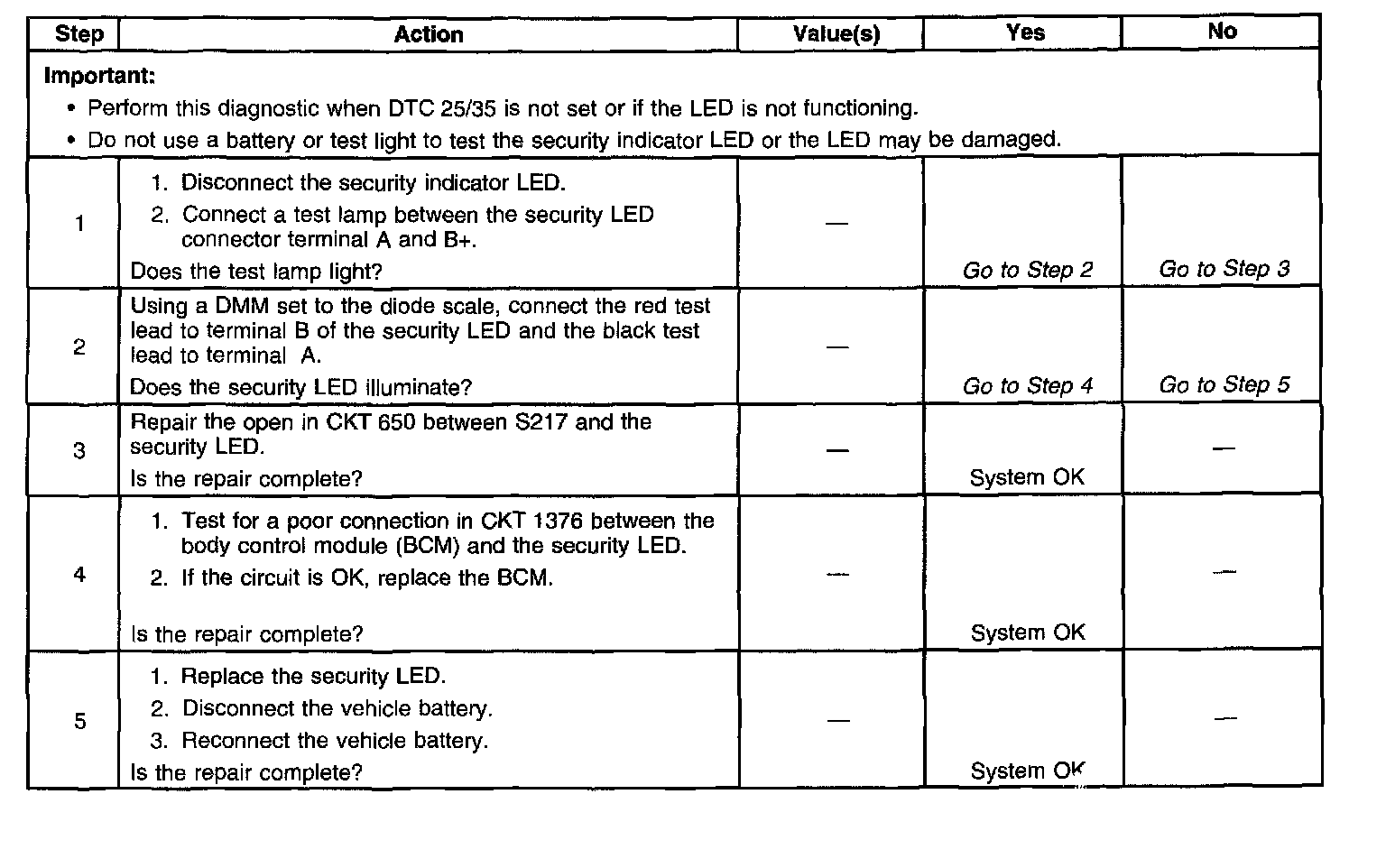

Diagnostic Trouble Code (DTC) Chart:

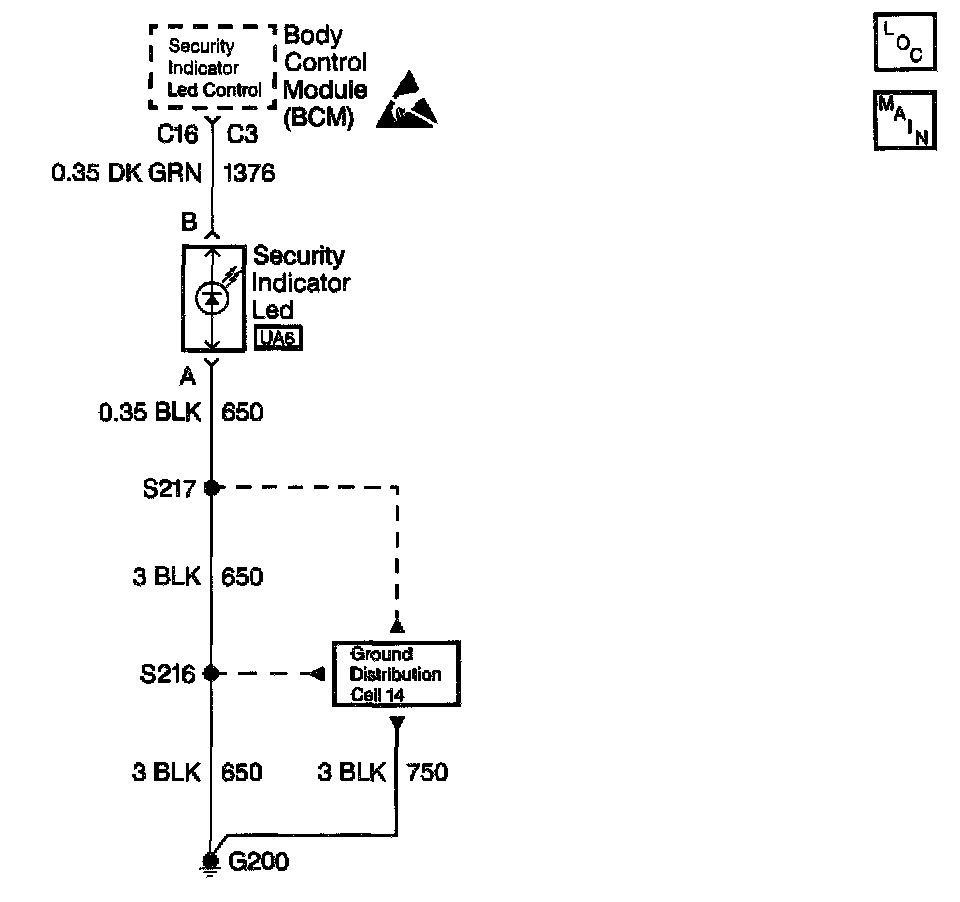

Wiring Schematic:

CIRCUIT DESCRIPTION
The body control module (BCM) provides an output on circuit 1376 to the security LED lamp on the instrument cluster while the drivers seatbelt is unfastened.

CONDITIONS FOR SETTING THE DTC
DTC 25 is set when the BCM detects the security LED at connector C3 terminal C16 when the ignition is turned to the RUN position.

DTC 35 is set when the BCM detects the security LED at any time since the codes were last cleared.

ACTION TAKEN WHEN THE DTC SETS
DTC 35 is required for content theft deterrent operation. The security LED must be detected for the alarm to function.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
1. This step tests the security LED ground CKT 650.
2. This step tests the security LED.
4. This step tests CKT 1376 for an open or poor connection.
