C0550

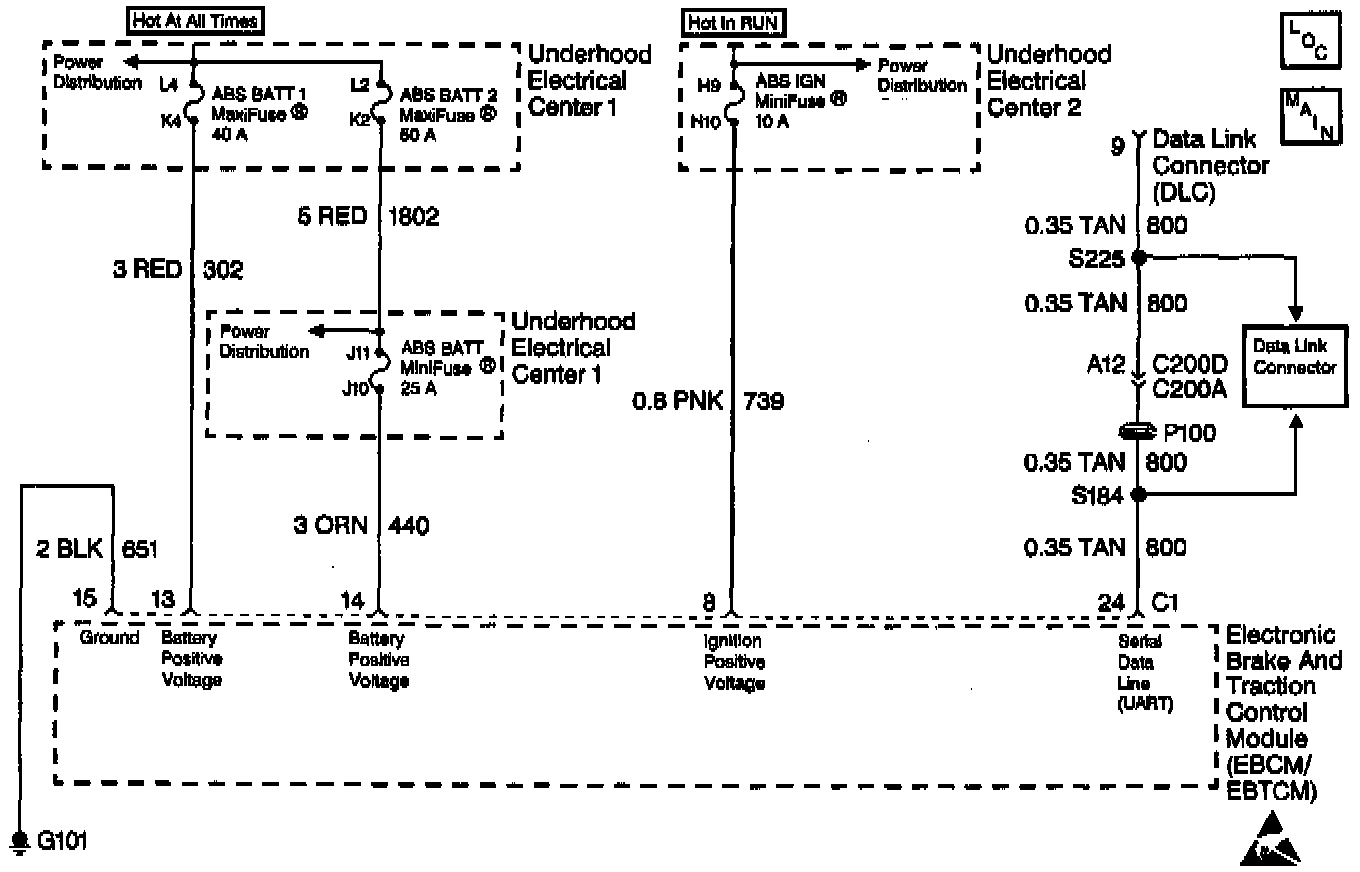

CIRCUIT DESCRIPTION
This Diagnostic Trouble Code (DTC) identifies a malfunction within the EBCM/EBTCM.

CONDITIONS FOR SETTING THE DTC
DTC C0550 is set when an internal EBCM/EBTCM malfunction exists.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction DTC stores.
^ The ABS/TCS disables.
^ The amber ABS/TCS indicator(s) turn on. The Red BRAKE Warning indicator turn on.

CONDITIONS FOR CLEARING THE DTC
^ Condition for DTC is no longer present and scan tool clear DTC function is used.
^ 100 ignition cycles pass with no DTC(s) detected.
