C0238

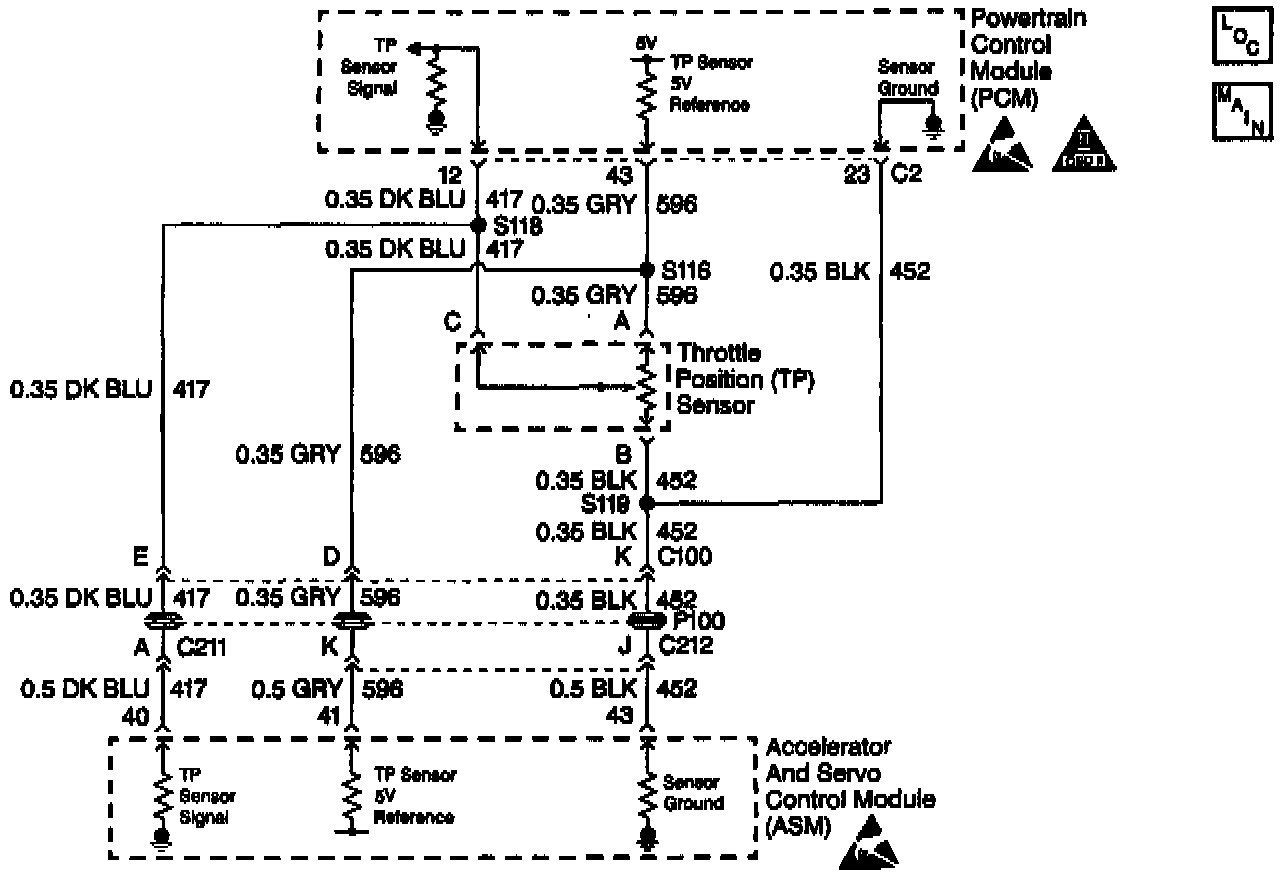

CIRCUIT DESCRIPTION
The throttle position signal is used by the Accelerator and Servo Control Module (ASM) to control the actual throttle position that is requested by the EBTCM. The EBTCM compares the Delivered throttle position sensor value that is sent from the ASM to the throttle position sensor value sent from the Powertrain Control Module (PCM) over the UART serial data line.

CONDITIONS FOR SETTING THE DTC
DTC C0238 will set if the EBTCM detects a difference between the PCM throttle position and the throttle position sent from the ASM.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) is stored.
^ The TCS is disabled.

CONDITIONS FOR CLEARING THE DTC
^ Condition for DTC is no longer present and scan tool clear DTC function is used.
^ 100 ignition cycles have passed with no DTC(s) detected.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ If an intermittent malfunction exists refer to General Electrical Diagnosis in Wiring Systems.

TEST DESCRIPTION

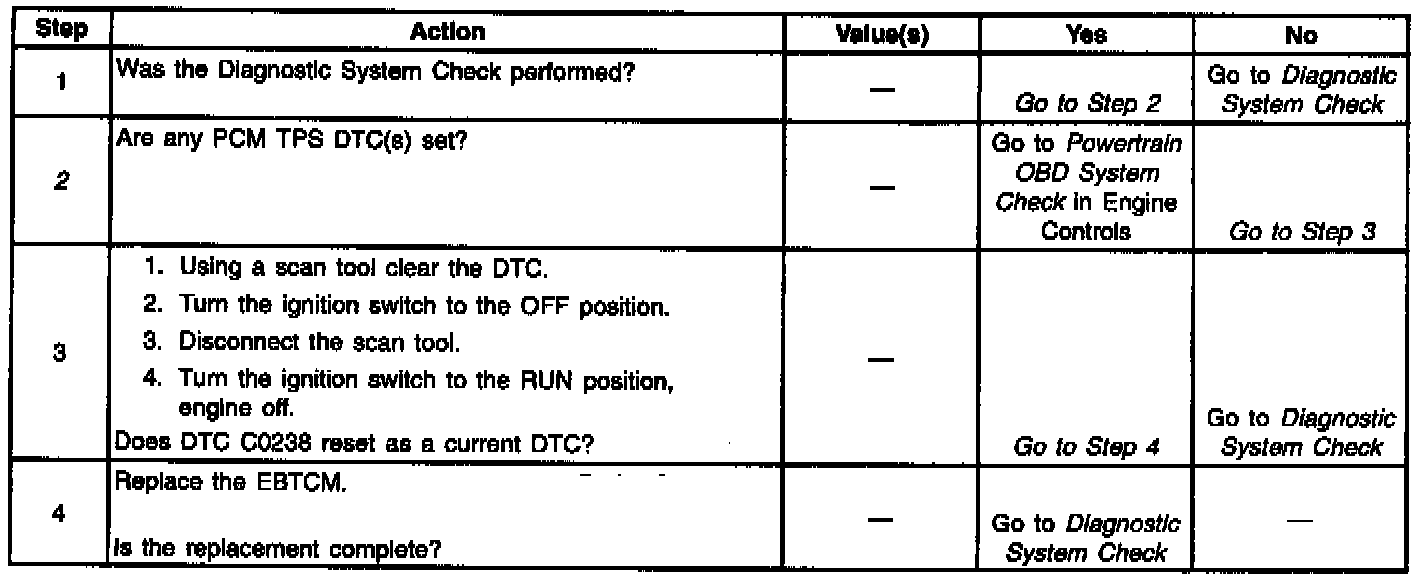

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step checks if the PCM detected a fault.
