C0070

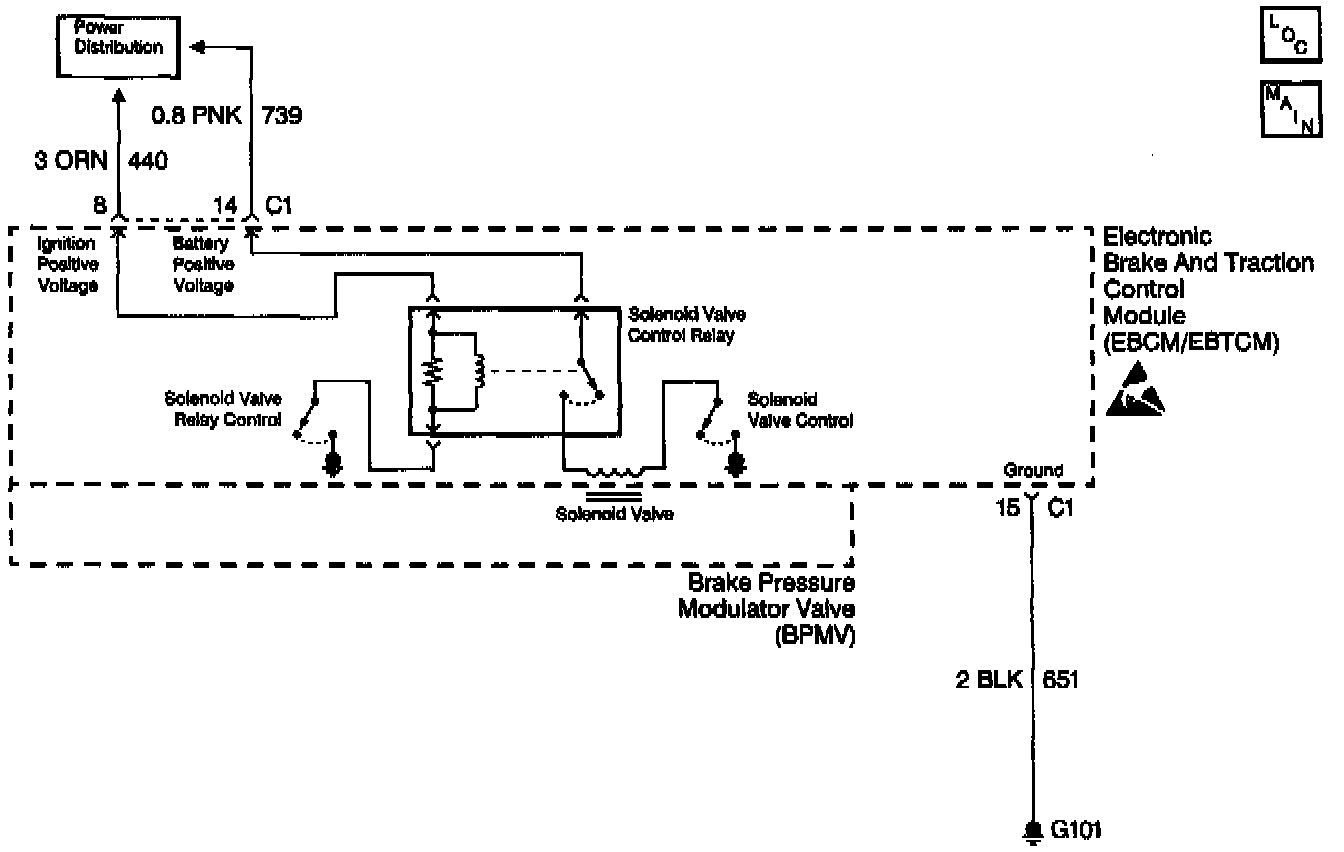

CIRCUIT DESCRIPTION
The Inlet valve solenoid circuits are supplied with battery power when the ignition is in the run position. The EBCM/EBTCM controls the valve functions by grounding the circuit when necessary.

CONDITIONS FOR SETTING THE DTC
The EBCM/EBTCM senses a discrepancy such as an open, short to ground, or short to voltage in the circuit.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) is stored. ABS/TCS disabled
^ ABS/TCS Indicators are turned on. The Red BRAKE Warning Indicator turns on.

CONDITIONS FOR CLEARING THE DTC
^ Condition for DTC is no longer present and scan tool clear DTC function is used.
^ 100 ignition cycles pass with no DTC detected.

TEST DESCRIPTION

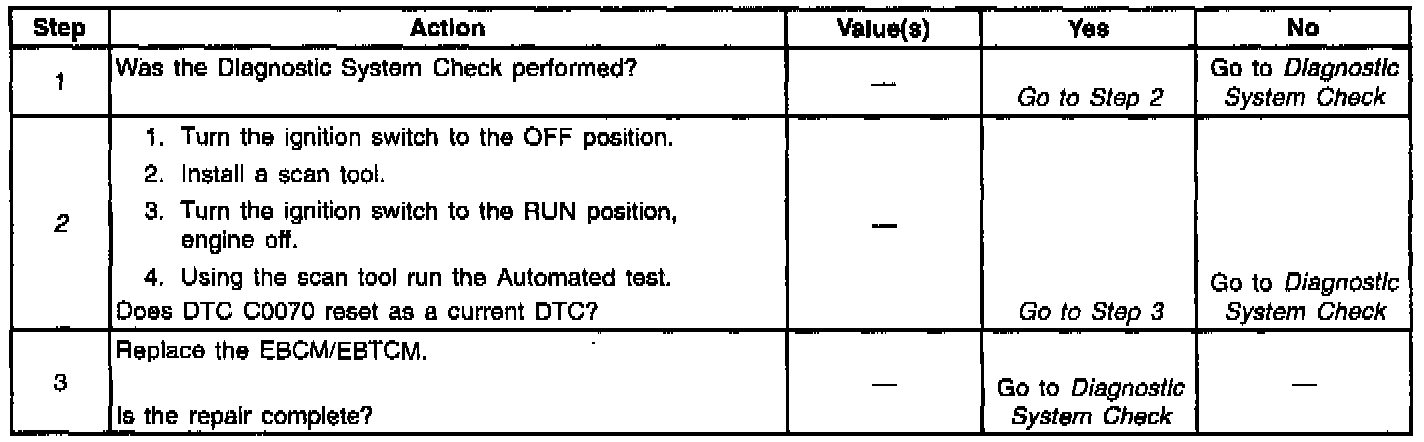

The numbers below refer to step numbers on the Diagnostic Table.
2. This step determines if the DTC is current.
