Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Bolt & Nut For Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    GM61850Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support. HAND TIGHTEN ONLY.

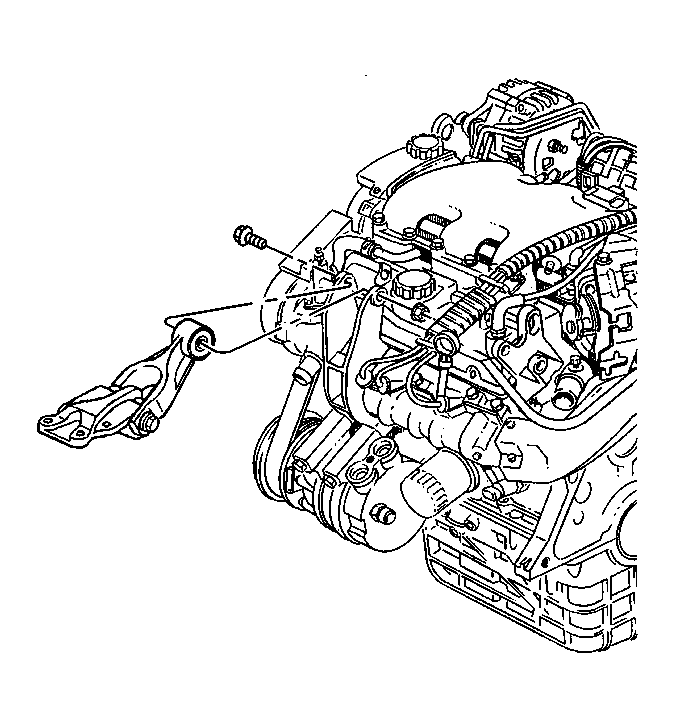

    3. Fig 2: Locating Bolt & Nut For Engine Mount Strut At Right Engine Mount Strut Bracket
    GM105887Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolt and the nut to the engine mount strut at the right engine mount strut bracket on the engine.

    Tighten:  Tighten both engine mount strut nuts to 48 N.m (35 lb ft).
