Underhood (UH) Electrical Center C1

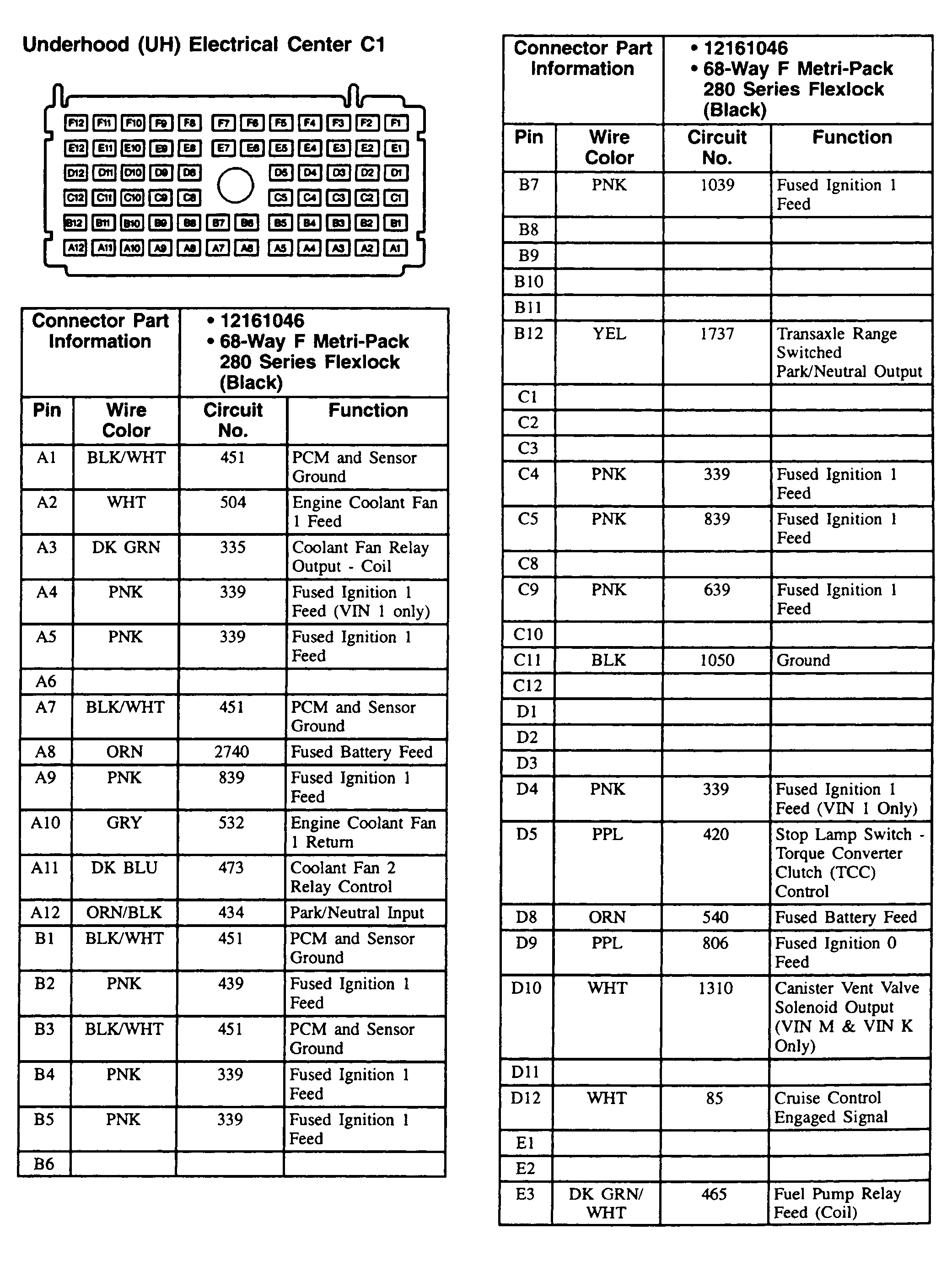

Fig 1: Underhood (UH) Electrical Center C1 (Century & Regal) - 68-Pin Connector (Black), 1 Of 2
G00168685Courtesy of GENERAL MOTORS CORP.

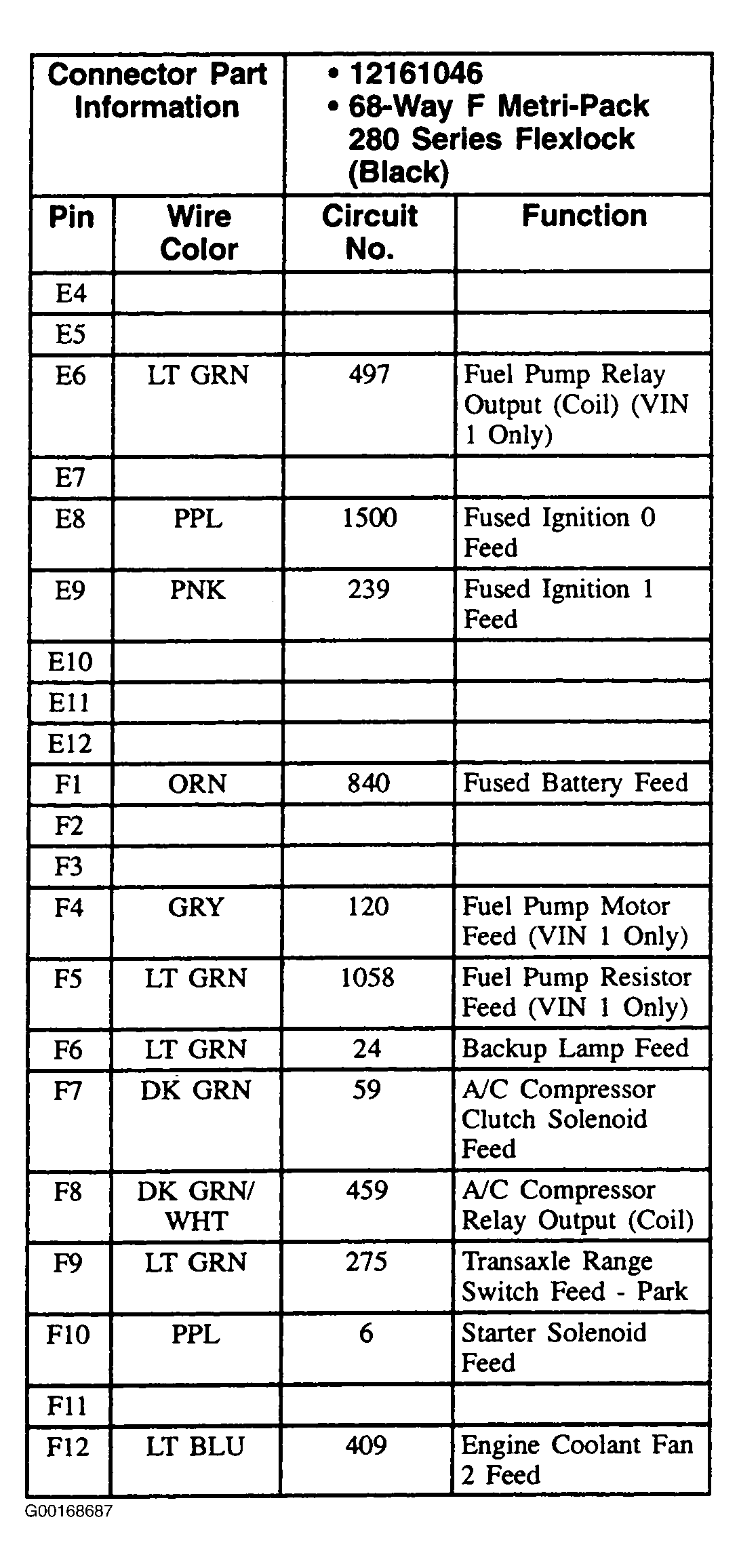

Fig 2: Underhood (UH) Electrical Center C1 (Century & Regal) - 68-Pin Connector (Black), 2 Of 2
G00168687Courtesy of GENERAL MOTORS CORP.
