Connector Terminal Identification
>>
Seat Belt/Ignition Key & Lamps
>>
Cutlass Supreme, Lumina & Monte CARLO
>>
Seat Belt/Ignition Key & Lamps Alarm C2
Seat Belt/Ignition Key & Lamps Alarm C2

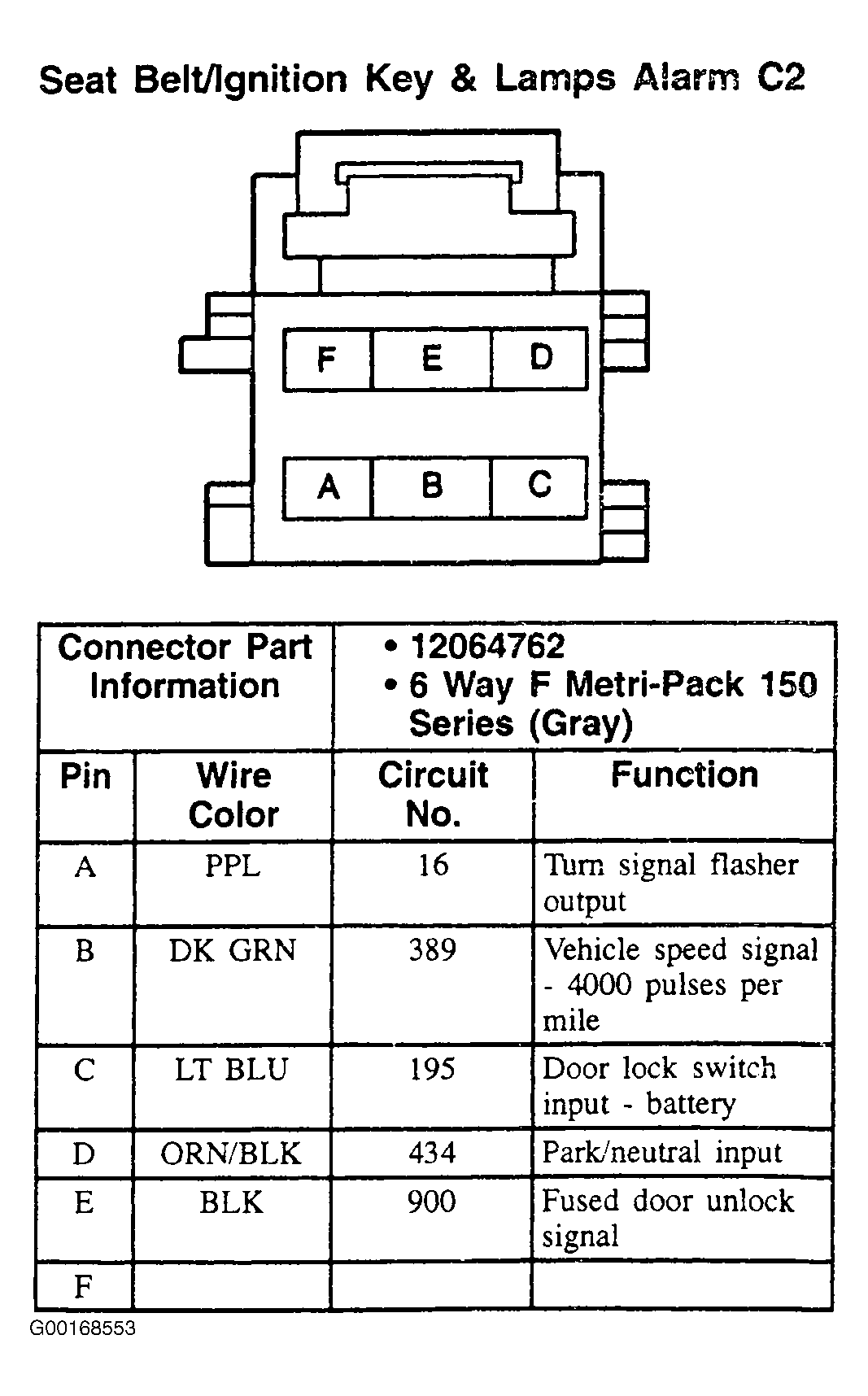

Fig 1: Seat Belt/Ignition Key & Lamps Alarm C2 (Cutlass Supreme, Lumina & Monte Carlo) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
