Park & Turn Signal Lamp (LF & RF) & Stop, Tail & Turn Signal Lamp (LR & RR)

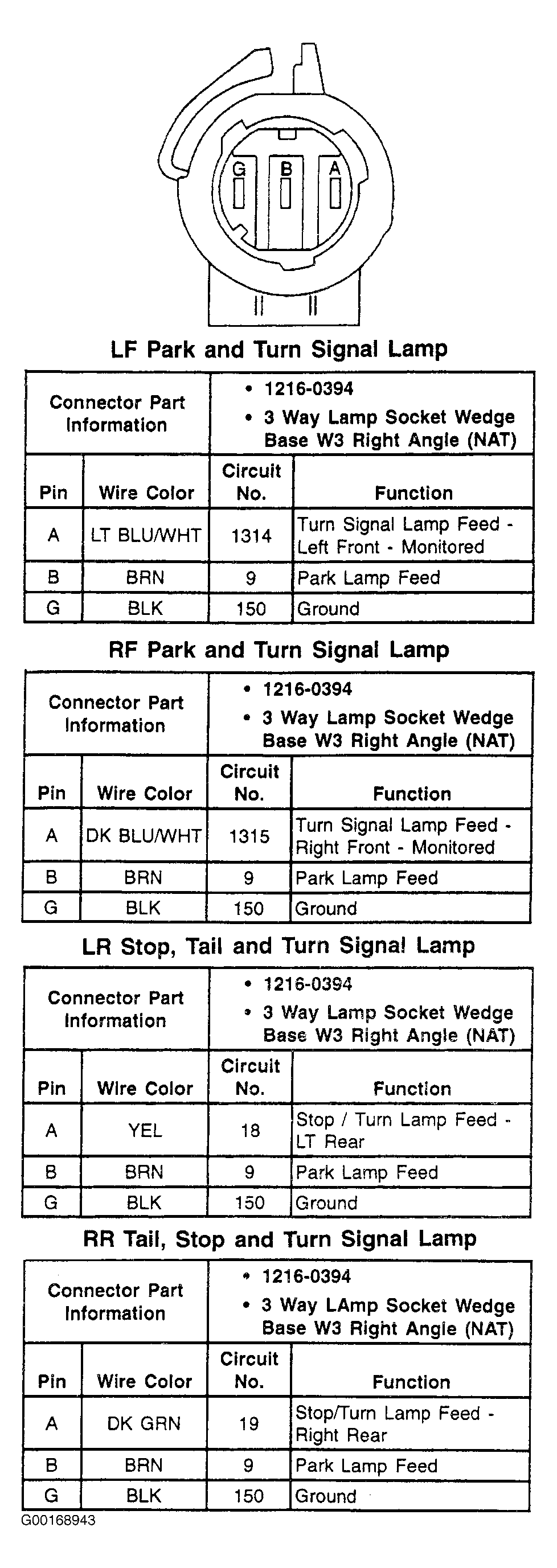

Fig 1: Park & Turn Signal Lamp (LF & RF) & Stop, Tail & Turn Signal Lamp (LR & RR) - 3-Pin Connector (Natural)
G00168943Courtesy of GENERAL MOTORS CORP.
