Wiper Motor Cover Replacement

Remove or Disconnect

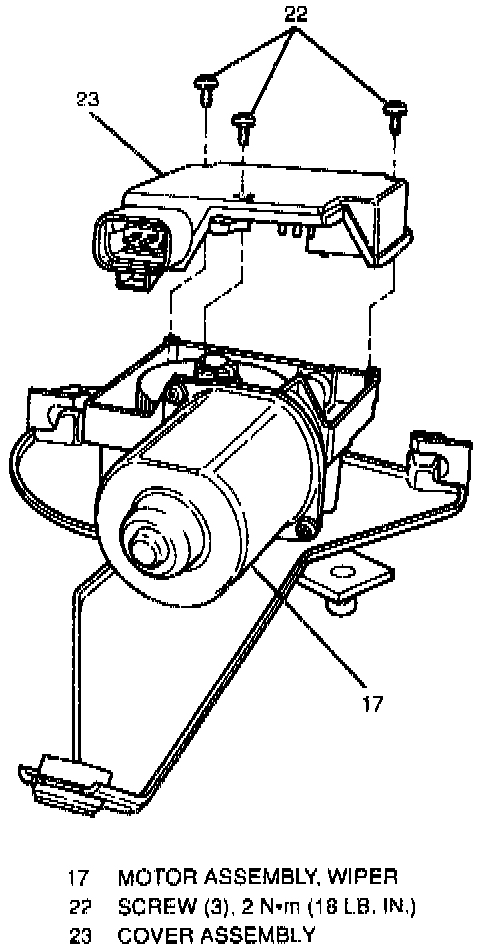

1. Three screws (22) using Torx screwdriver.
2. Cover assembly (23).

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Cover assembly (23).
IMPORTANT

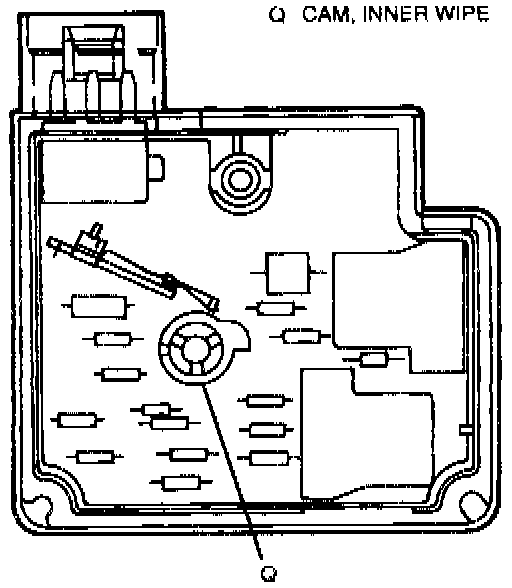

^ Before installing the cover assembly, make certain that the inner wipe cam is positioned as shown in second image.
2. Three screws (22).
Tighten
^ Screws (22) to 2 Nm (18 lb in).
