Wiper Blade Element Replacement

Remove or Disconnect
1. Wiper blade assembly from wiper arm assembly.
IMPORTANT
^ Blade element must be replaced if removed from wiper blade assembly.

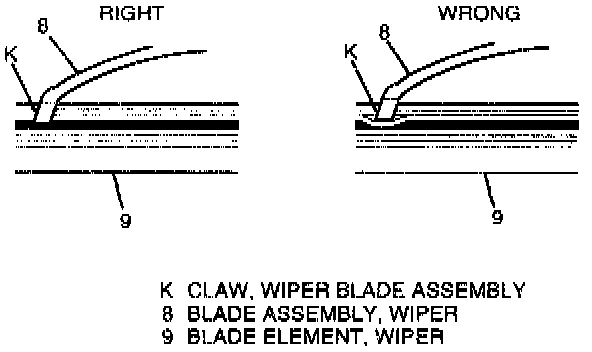

2. Blade element (9) by pulling out through wiper blade assembly claws (K).

Install or Connect
IMPORTANT
^ End of wiper blade assembly with notches must be installed closest to base of wiper arm assembly.
1. Blade element (9) in wiper blade assembly (8).

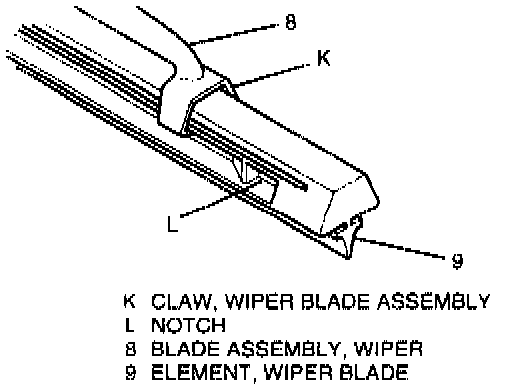

A. Slide blade element (9) through wiper blade assembly claws (K) until claw (K) is locked into notches (L) in blade element (14).
2. Wiper blade assembly to wiper arm assembly.
