Windshield Washer Pump: Service and Repair

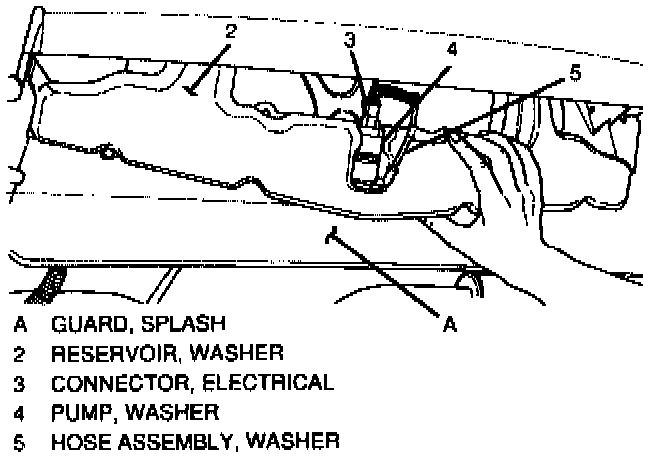

Remove or Disconnect
1. Negative battery cable.
2. Electrical connector (3).
3. Place drain pan under vehicle.
4. Washer pump (4) from reservoir (2) using suitable pliers.
5. Washer hose assembly (5) from pump.

Install or Connect
1. Washer hose assembly (5).
2. Washer pump (4) in washer reservoir (2) using pliers.

IMPORTANT
^ Make sure washer pump is pushed all the way into washer reservoir seal.
3. Electrical connector (3).
4. Refill washer reservoir.
5. Negative battery cable.
