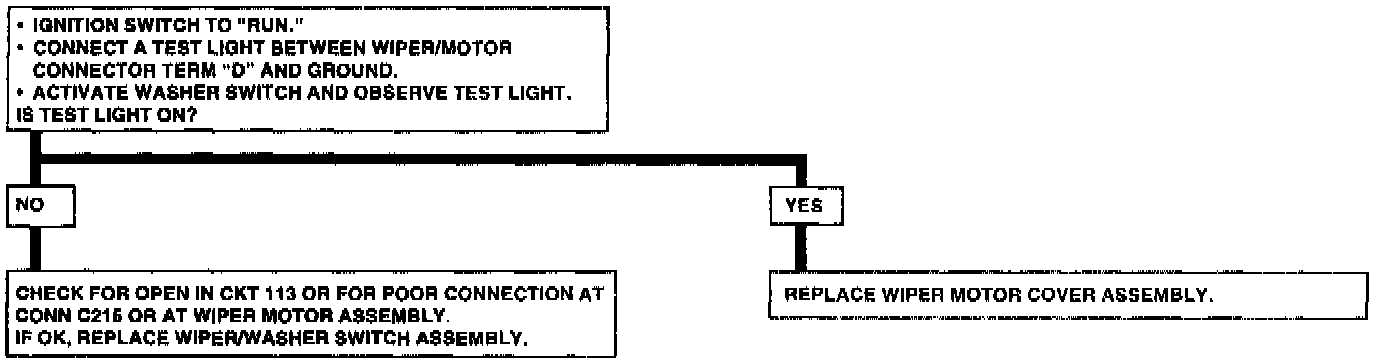

Chart 7 Wipers Do Not Operate When Washer Is Activated
Chart 7 Wipers Do Not Operate When Washer Is Activated
WIPERS DO NOT OPERATE WHEN WASHER SWITCH IS ACTIVATED (ALL OTHER MODES OK):
