Home >> Chevrolet >> 1997 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams

Electrical Diagrams

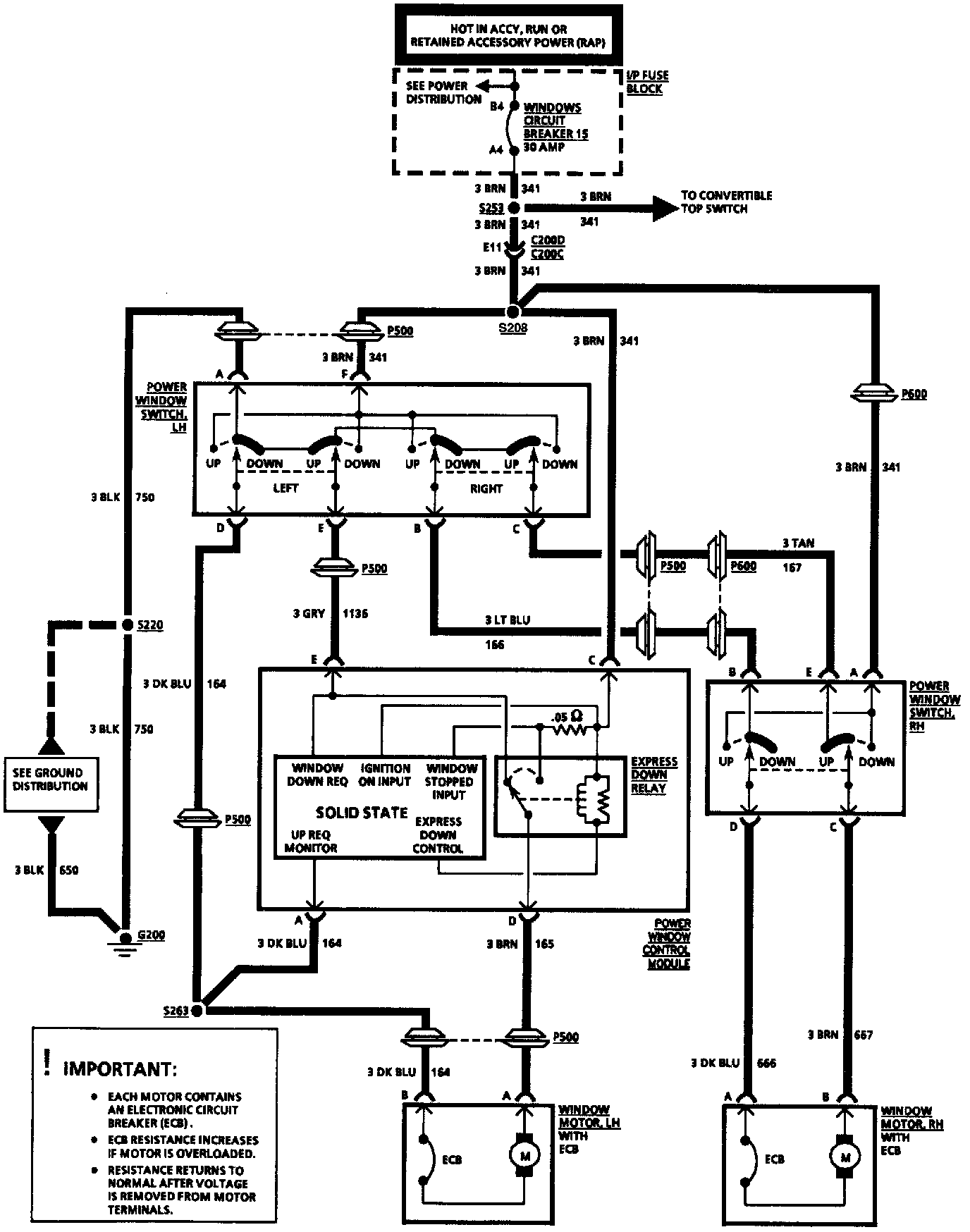

Power Windows:
