K. Drive Gear Bearing Retainer Oil Seal






REMOVE OR DISCONNECT
- Oil seal, using a screwdriver or a small chisel.

INSTALL OR CONNECT

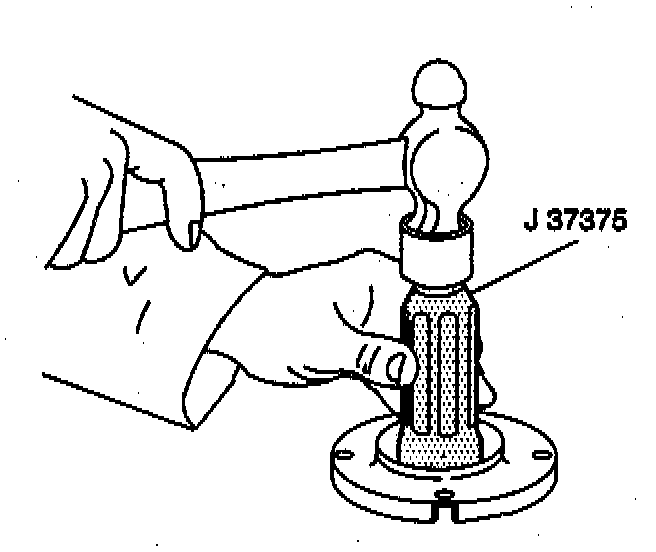

- New seal into retainer using J 37375 until it bottoms in bore.
- Lubricate inside diameter of seal with transmission lubricant.
