J. Extension Housing Oil Seal and Bushing

^ Tools Required:
- J 21426 Extension Housing Oil Seal Installer
- J 8092 Universal Driver Handle
- J 23062-14 Extension Housing Bushing Remover and Installer

REMOVE OR DISCONNECT
1. Oil seal out of extension housing, using a screwdriver or small chisel.

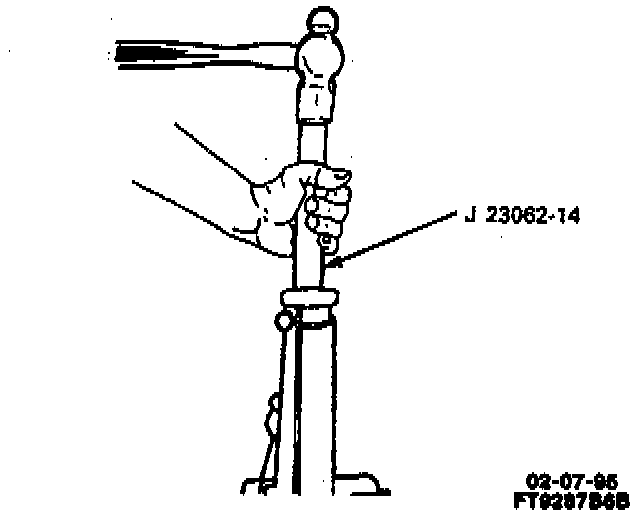

2. Bushing out of housing, using J 8092 with J 23062-14.

INSTALL OR CONNECT
1. Bushing in housing, using J 8092 with J 23062-14.
2. New on seal into extension housing using:
- Lubricate inside diameter of oil seal with transmission lubricant.
