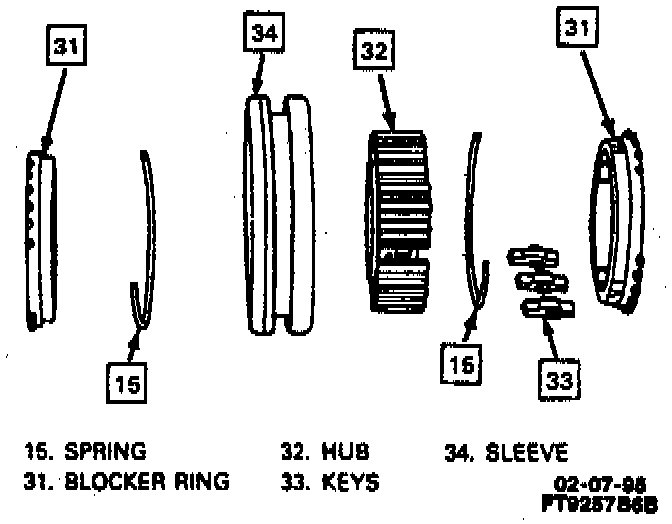

I. Synchronizer Keys and Springs

NOTICE: The Synchronizer hubs and sliding sleeves are a selected assembly and should be kept together as originally assembled, but the keys and springs may be replaced if worn or broken.

REMOVE OR DISCONNECT
- Keys and springs.
- If relation of hub and sleeve are not already marked, mark for assembly purposes.
- Push the sliding sleeve from the hub. The keys will fall free and the springs may be easily removed.

INSTALL OR CONNECT
- Keys and springs.
- Place a blocker ring on side of the hub and sleeve and install keys and retain with a spring.
- Place a blocker ring on opposite side of the hub and sleeve and install remaining spring.
