C. Drive Gear Disassembly

^ Tool Required
- J 22912-01 Bearing and Gear Puller

DISASSEMBLE

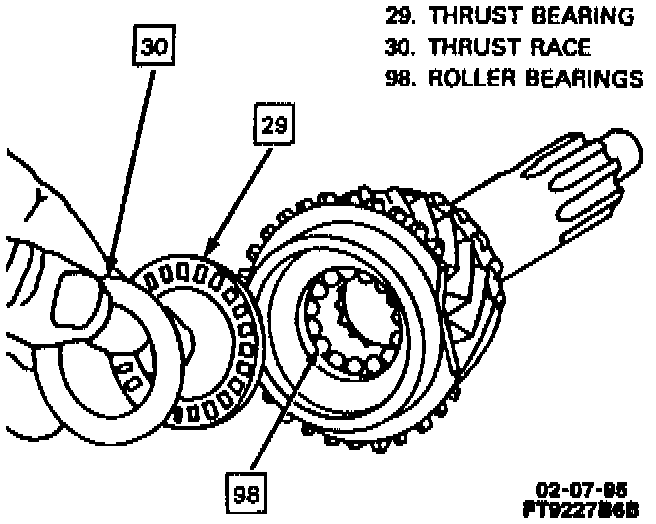

1. Bearing race.
2. Thrust bearing.





3. Roller bearings from cavity of drive gear.

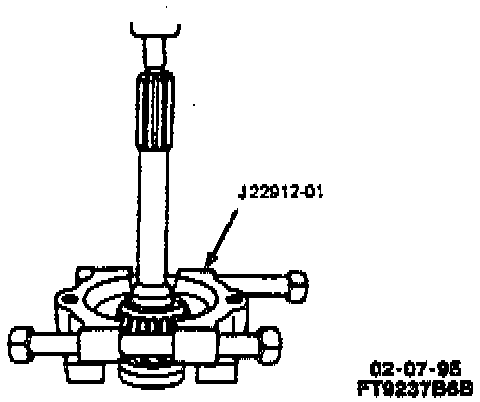

4. Remove bearing from drive gear using J 22912-01 and a press.

Clean
- Parts in appropriate solvent.

Inspect
- Gear teeth and shaft pilot for wear.
