Pilot Bearing: Service and Repair

^ Tool Required:
- J 23907 Clutch Pilot Bearing Remover

REMOVE OR DISCONNECT
1. Clutch driven plate.
2. Engine flywheel.

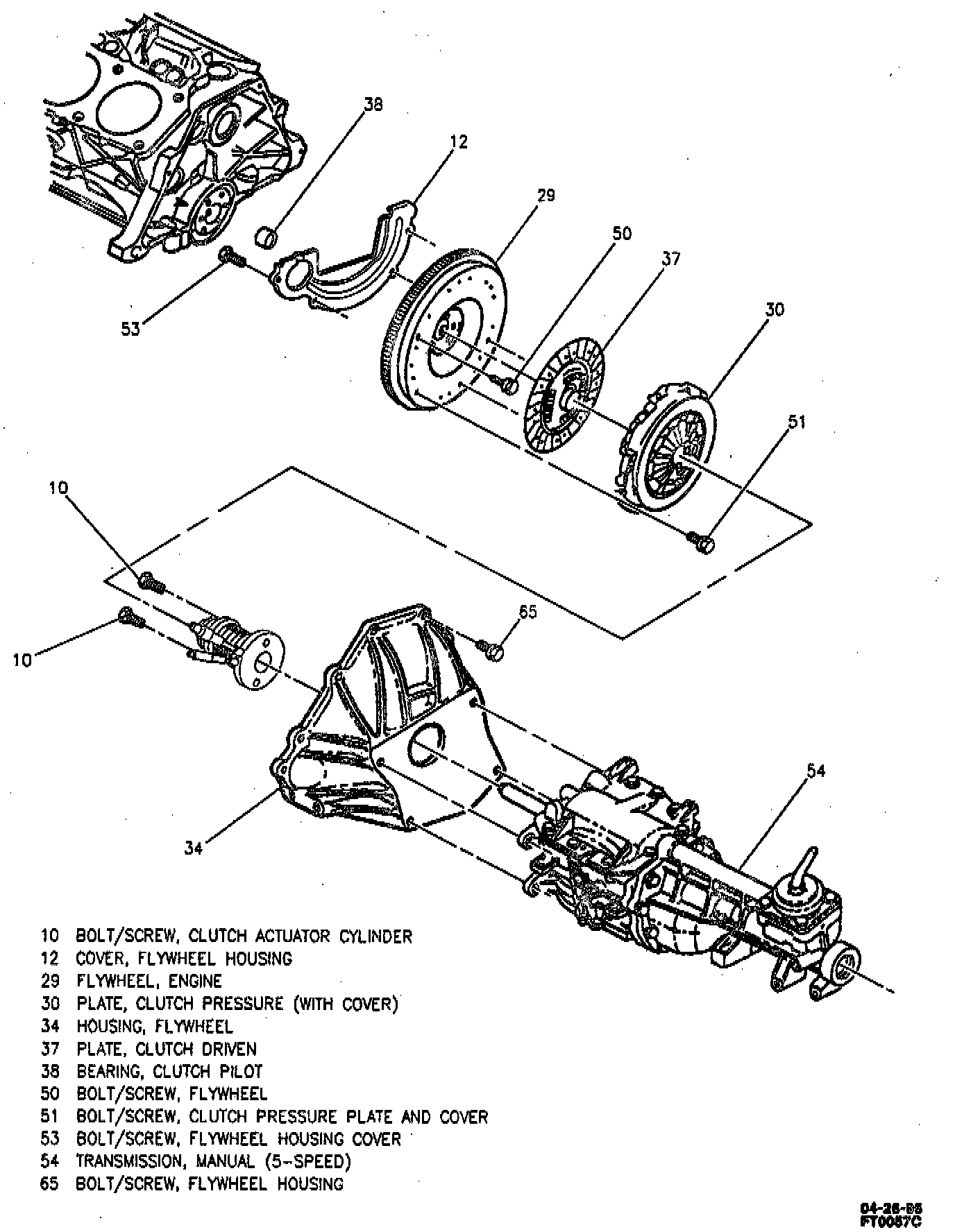

3. Clutch pilot bearing (38 or 48) using J 23907.

INSTALL OR CONNECT
1. Clutch pilot bearing (38 or 48).
2. Engine flywheel.
3. Clutch driven plate.
