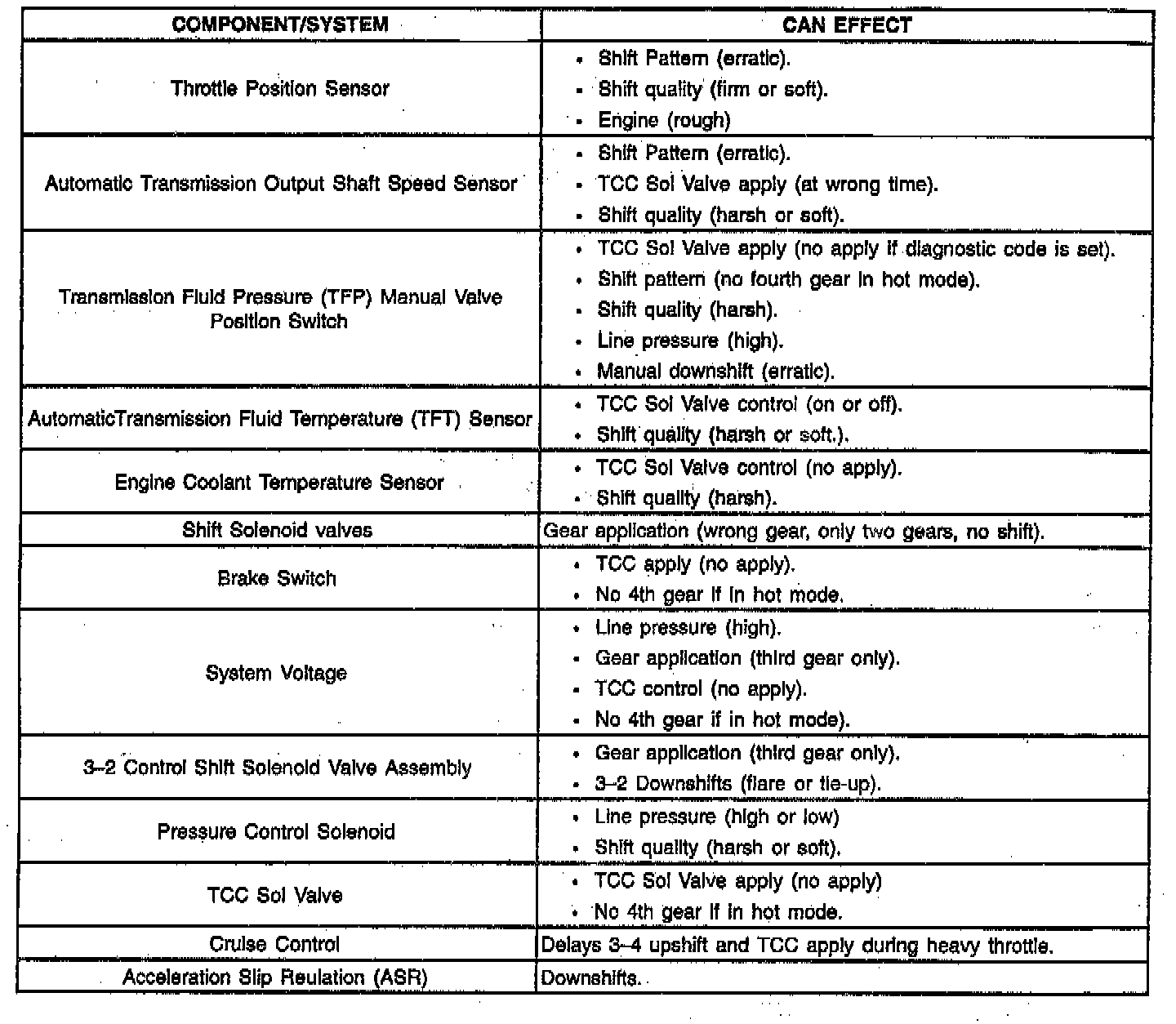

Electronic Component Malfunctions

This table gives some general information about electronic component malfunctions. Use this information to become familiar with possible conditions caused by transmission/vehicle electrical components. Refer to the Diagnosis Charts for more specific information.
