Turbine Shaft Seals Installation

INSTALLATION PROCEDURE
^ Tools Required:
- J 36418-1 Turbine Shaft Seal Installer
- J 36418-2A Turbine Shaft Seal Sizer

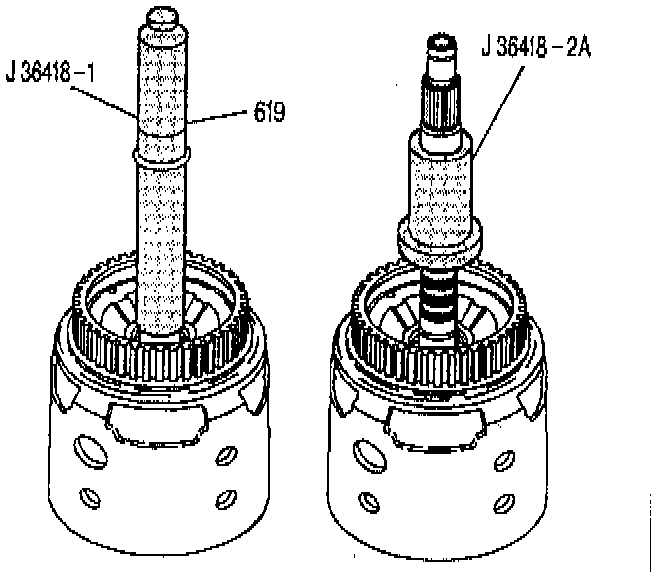

1. Use the J 36418-1 in order to install the four turbine shaft oil seal rings.
2. Place the J 36418-2A over the turbine shaft oil seal rings. Leave the J 36418-2A on the shaft until the reverse input clutch must be installed on the input clutch.
