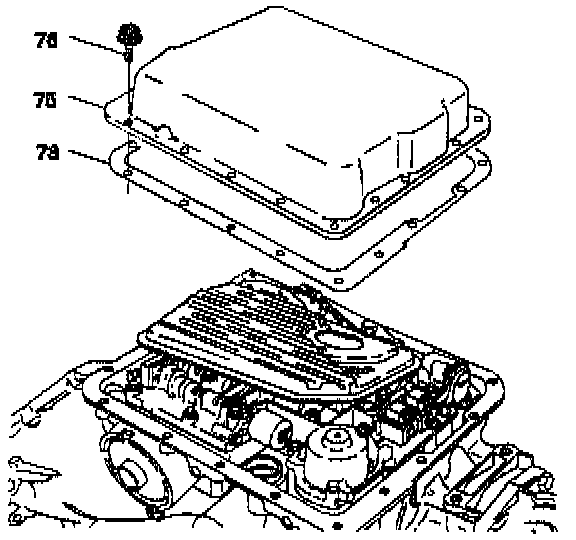

Transmission Oil Pan Installation

INSTALLATION PROCEDURE
1. Place the transmission oil pan gasket on the case.
2. Place the transmission oil pan on the case.
3. Install all of the transmission oil pan screws.
^ Tighten the screws to 12 Nm (9 ft. lbs.).
