Reverse Input Clutch Plate Travel Check

INSPECTION PROCEDURE

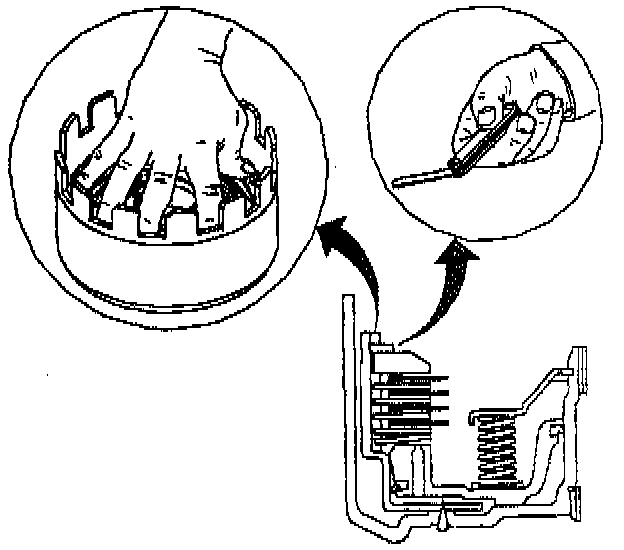

1. Apply an evenly distributed load to the clutch pack.
2. Apply medium pressure approximately 89 Nm (20 ft. lbs.) on the backing plate.
3. Use feeler gages to check the reverse input clutch plate travel.
4. Check the travel between the backing plate and the reverse input clutch retainer ring. The reverse input clutch plate travel should be 1.02-1.94 mm (0.040-0.076 inch).
5. Select the proper backing plate to obtain the correct travel.
