Reverse Input Clutch Disassemble

REMOVAL PROCEDURE
^ Tools Required:
- J 23327-1 Clutch Spring Compressor
- J 25018-A Clutch Spring Compressor Adaptor

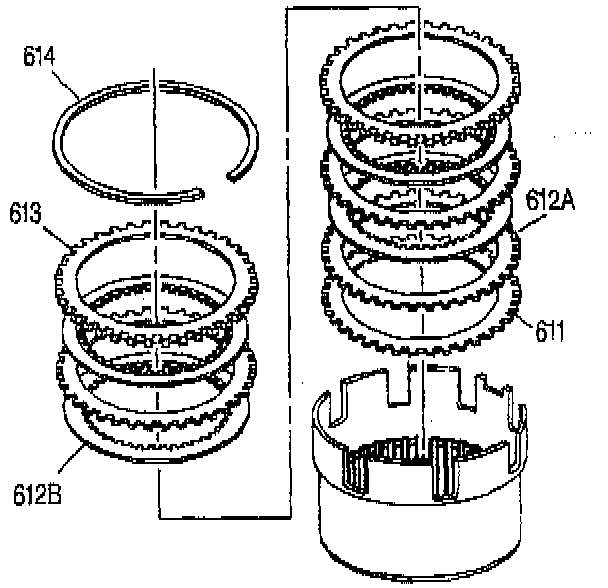

1. Remove the reverse input clutch retaining ring.
2. Remove all reverse input clutch plates.

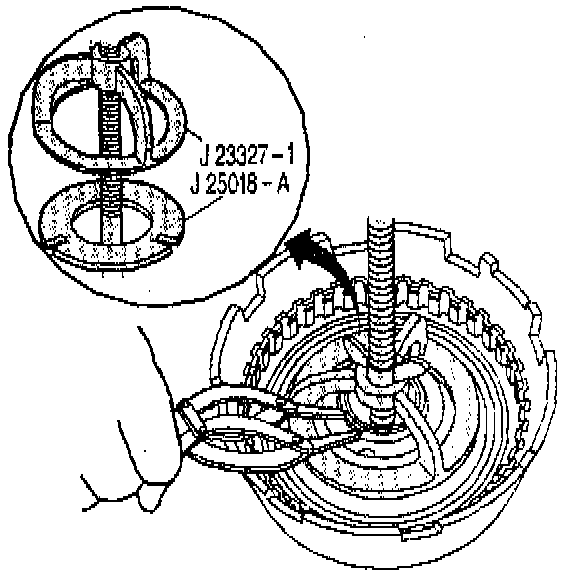

3. Install the J 23327-1.
4. Remove the reverse input clutch spring retainer ring.

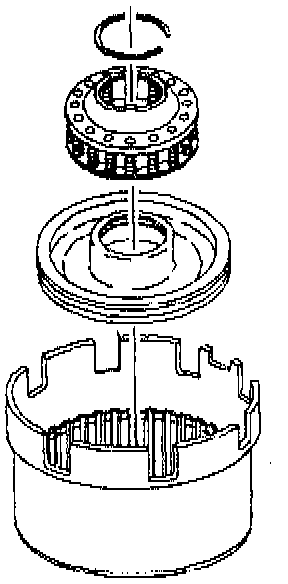

5. Remove the reverse input clutch spring assembly.
6. Remove the reverse input clutch piston assembly.
