Reverse Input Clutch Bushing Replacement

REPLACEMENT PROCEDURE
^ Tools Required:
- J 8092 Driver Handle
- J 25019-9 Bushing Installers
- J 34196 Bushing Set

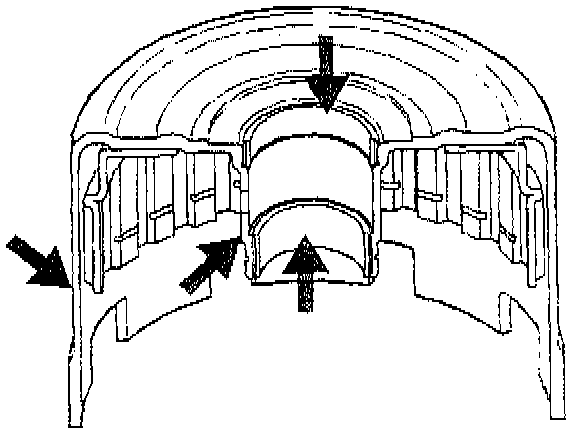

1. Inspect the reverse input clutch housing and drum assembly for the following conditions:
^ Damaged or worn bushings
^ Surface on the hub and outer housing
^ Leak at the weld

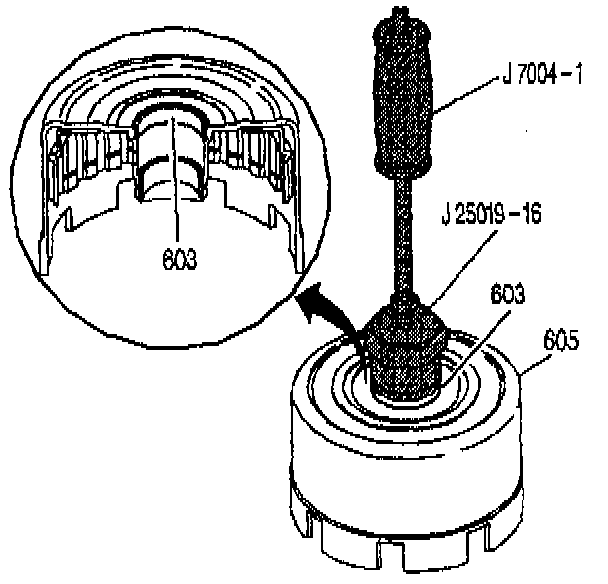

2. Remove the reverse input clutch front bushing.

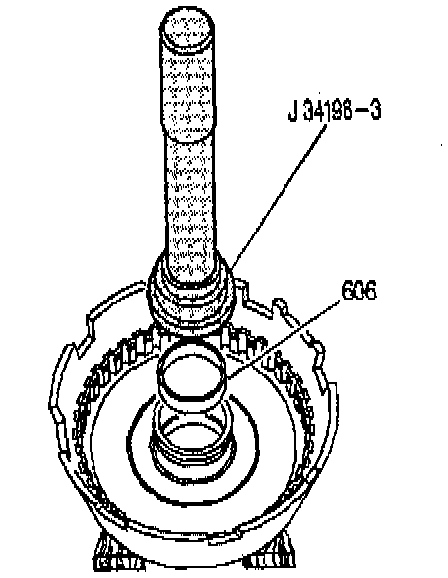

3. Remove the reverse input clutch rear bushing.





4. Install a reverse input clutch front bushing.

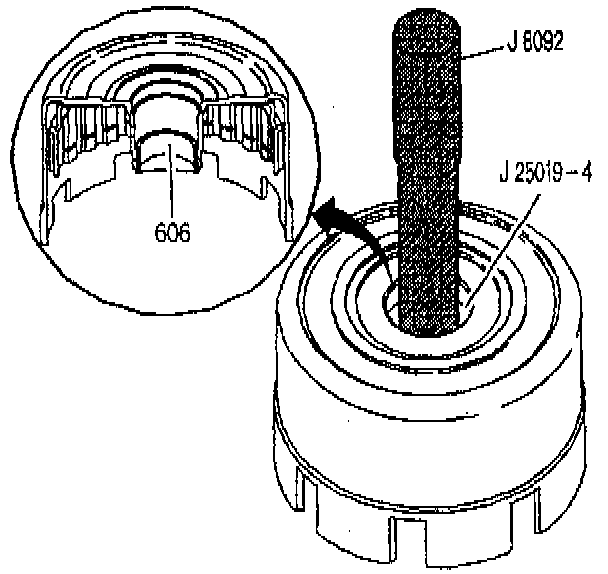

5. Install a reverse input clutch rear bushing.
