Reaction Gear and Carrier Installation

INSTALLATION PROCEDURE

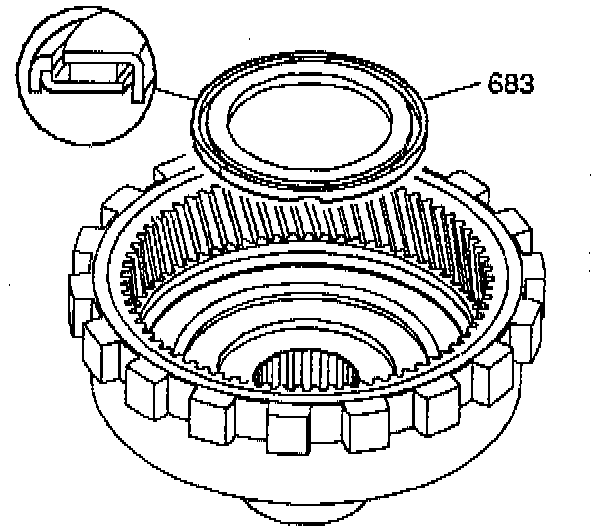

1. Install the reaction carrier thrust and the support bearing into the internal reaction gear support.

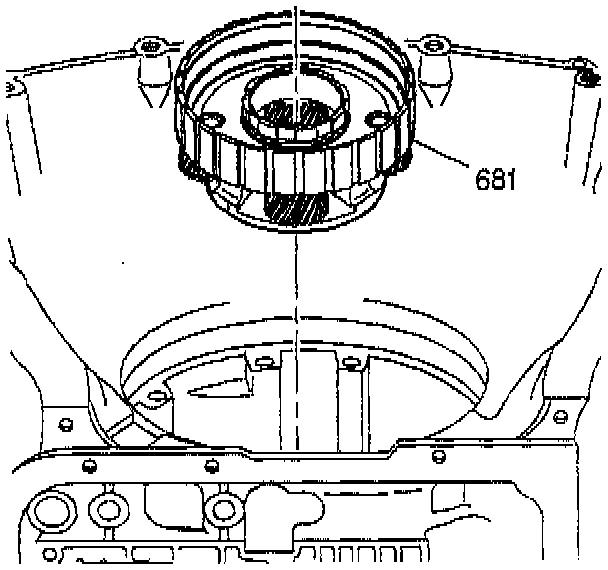

2. Install the internal reaction gear and the support into the case.





3. Install the reaction carrier assembly into the internal reaction gear.
