Reaction Gear Set Removal

REMOVAL PROCEDURE

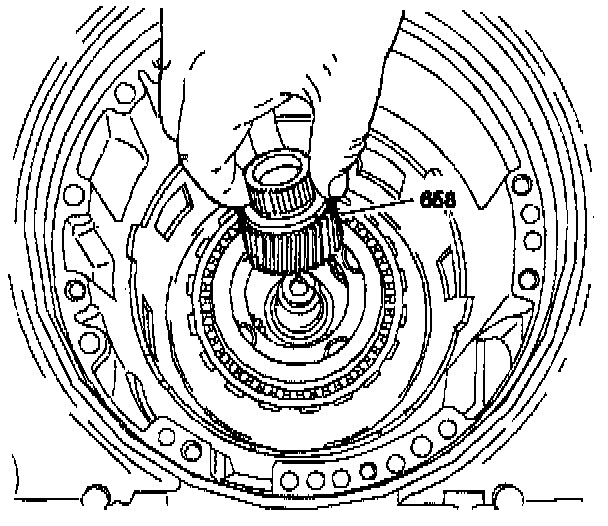

1. Remove the input sun gear.

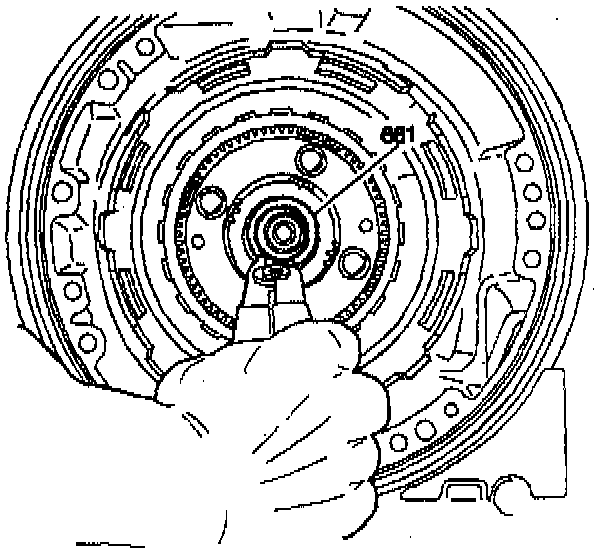

Important: Do not over expand the retainer.





2. Remove the output shaft to input carrier retainer.

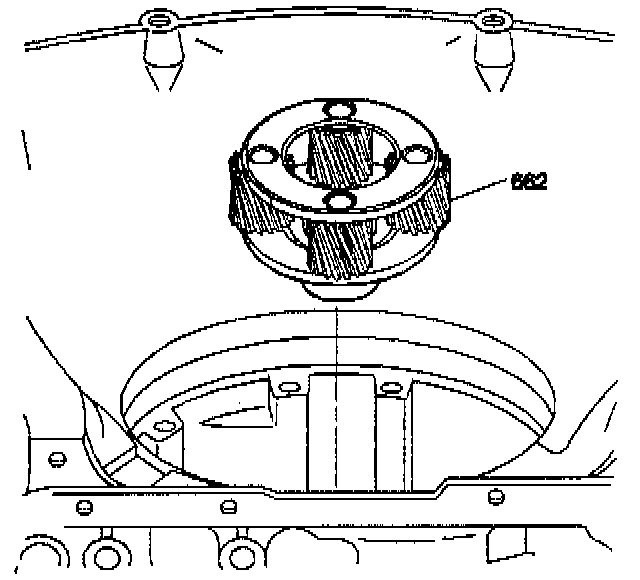

3. Remove the input carrier assembly and remove the bearing assembly.

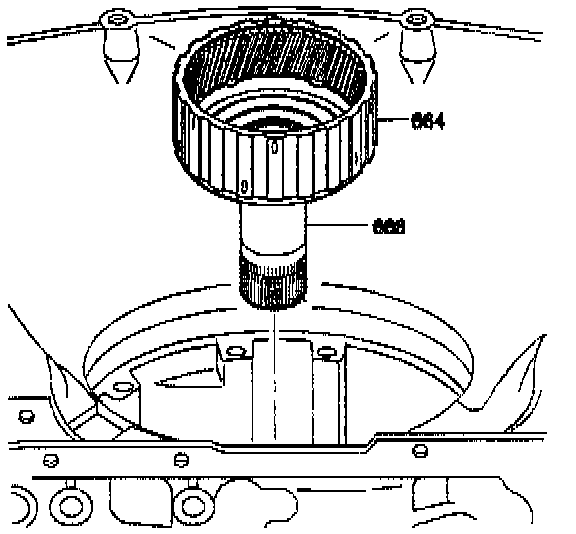

4. Remove the input internal gear and the reaction carrier shaft.

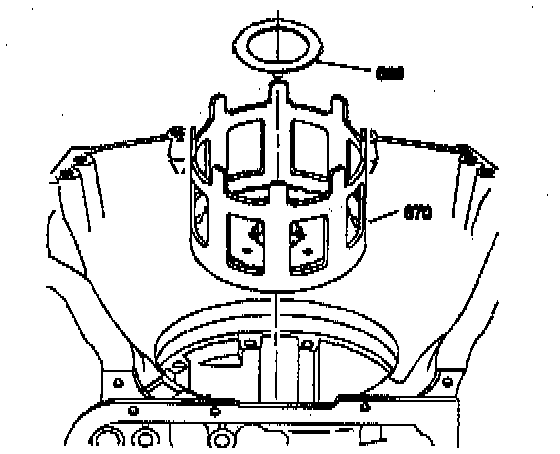

5. Remove the thrust washer and reaction sun shell.
