Output Shaft Installation

INSTALLATION PROCEDURE
^ Tools Required:
- J 29837 Output Shaft Support Fixture

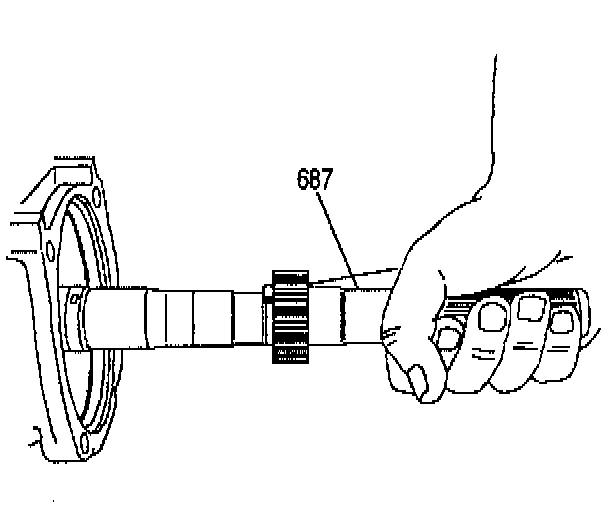

1. Install the output shaft.

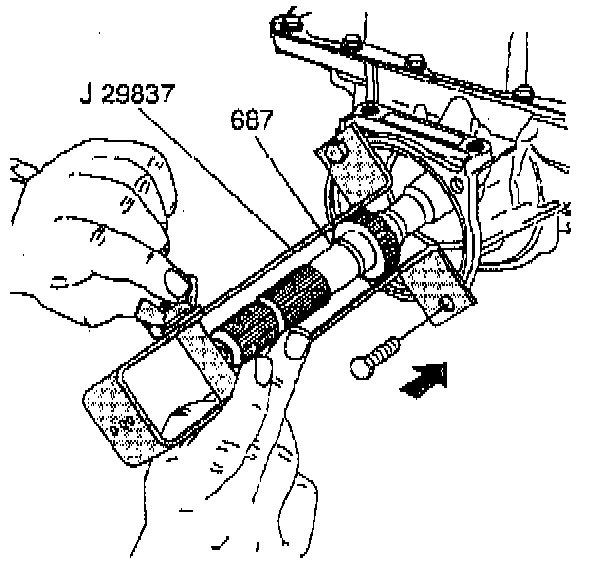

2. Install the output shaft support fixture.
