Oil Pump Rotor and Slide Measurement

Important: You must measure the rotor and slide on undamaged surfaces. Select similar size replacements. Refer to "OIL PUMP ROTOR AND SLIDE MEASUREMENT." Oil Pump Rotor and Slide Thickness
Lightly hone both sides of the replacement rotor and the replacement slide in order to remove any nicks or burrs.

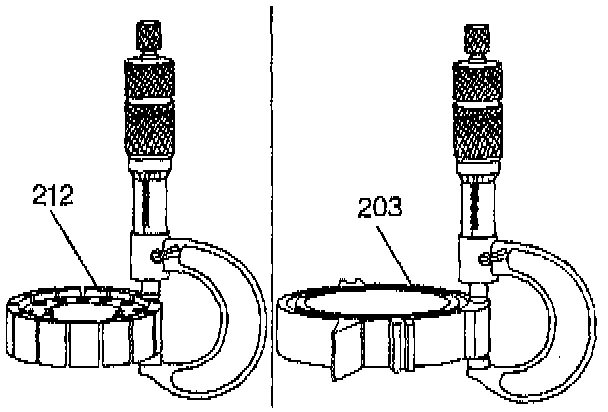

^ Measure the oil pump rotor (212) thickness.
^ Measure the oil pump slide (203) thickness.
