Oil Pump Disassemble

REMOVAL PROCEDURE

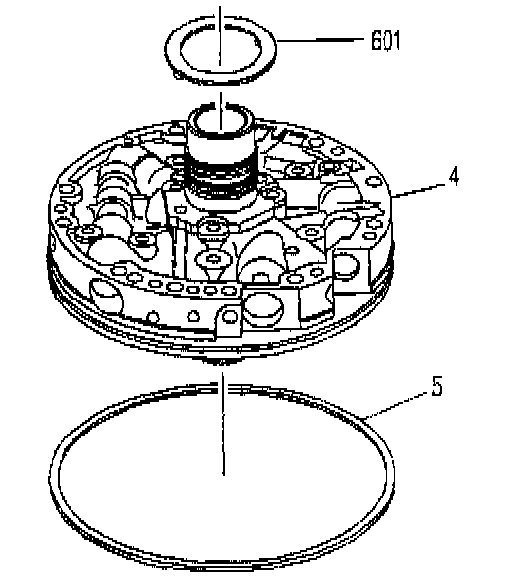

1. Remove the thrust (pump to drum) washer.
2. Remove the oil (pump to case) seal.

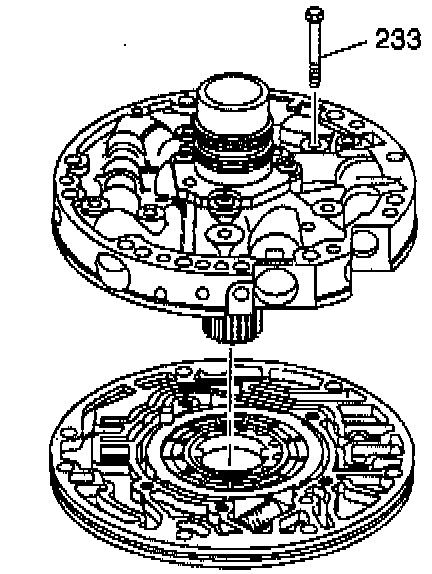

3. Remove the pump cover bolts.
4. Remove the pump cover from the pump body.
