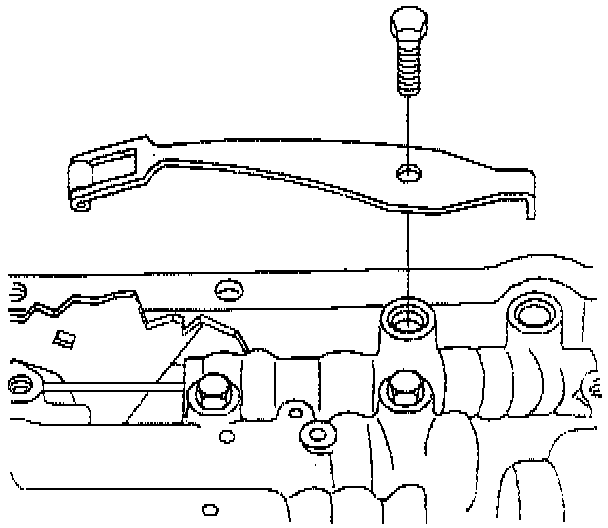

Manual Detent Spring Installation






INSTALLATION PROCEDURE
1. Inspect the manual detent spring assembly for cracks or damage.
2. Install the manual detent spring assembly.
3. Install the manual detent spring bolt.
^ Tighten the bolt to 24 Nm (18 ft. lbs.).
