Low and Reverse Clutch Plates Installation






INSTALLATION
1. Install the waved plate
2. Install the correct selective spacer plate (from the selection procedure)
3. Install the composition plate and alternate with a steel plate

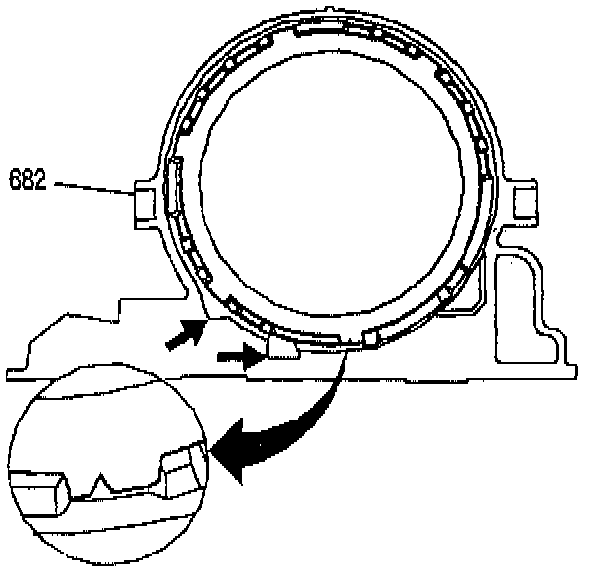

4. Index the steel plate splines in the case as shown.
