Low and Reverse Clutch Piston Removal

REMOVAL PROCEDURE

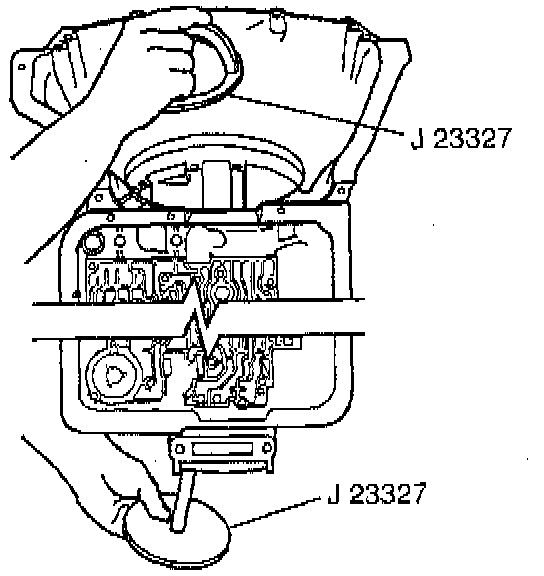

1. Install the clutch spring compressor.





2. Tighten the clutch spring compressor.

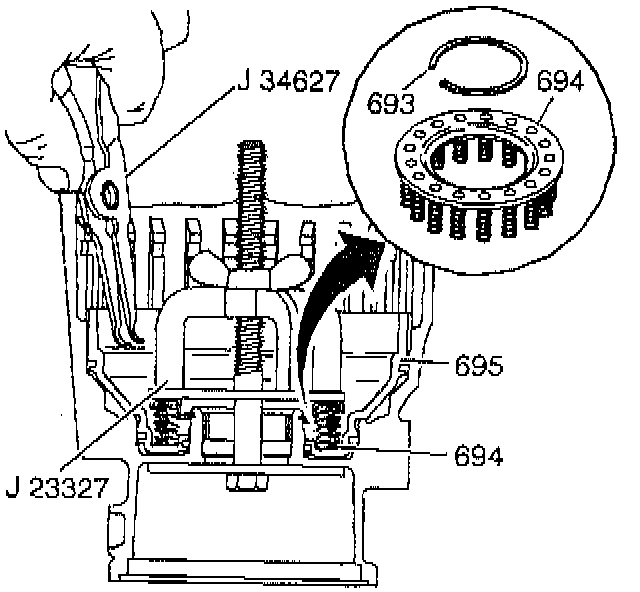

3. Remove the low/reverse clutch retainer ring.
4. Remove the low/reverse the clutch spring assembly.

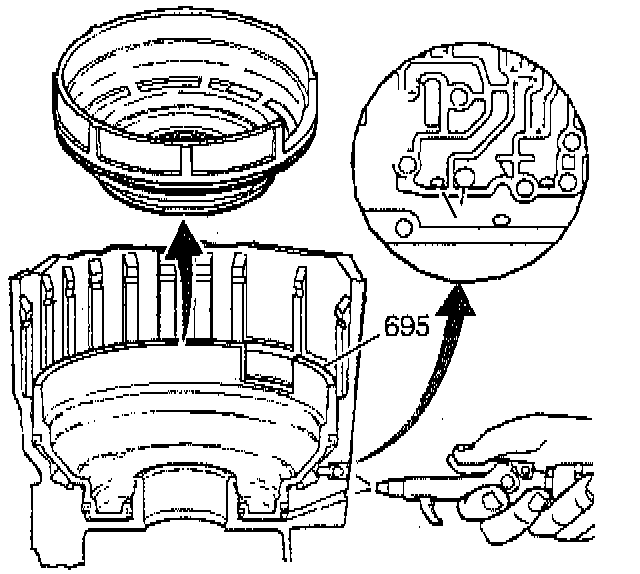

5. Blow compressed air into the case passage to remove the low/reverse clutch piston.
