Input Sun Gear Bushings Replacement
INSTALLATION PROCEDURE^ Tools Required:
- J 8092 Driver Handle
- J 34196 Bushing Set

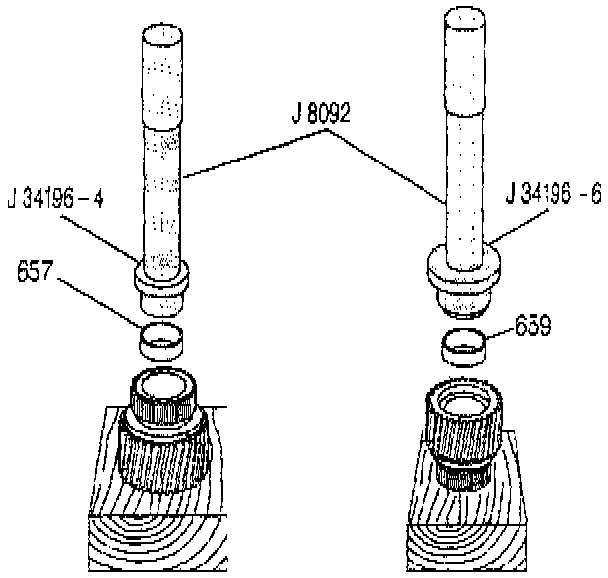

1. Remove the input sun gear front and rear bushings.

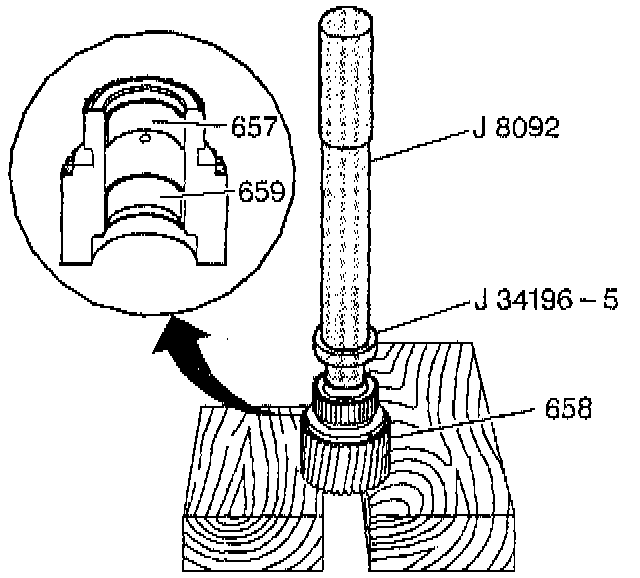

2. Install the input sun gear front and rear bushings.
^ Tools Required:
- J 8092 Driver Handle
- J 34196 Bushing Set
1. Remove the input sun gear front and rear bushings.
2. Install the input sun gear front and rear bushings.
