Input Internal Reaction Gear, Shaft Installation

INSTALLATION PROCEDURE
^ Tools Required:
- J 34196 Bushing Set
- J 8092 Driver Handle

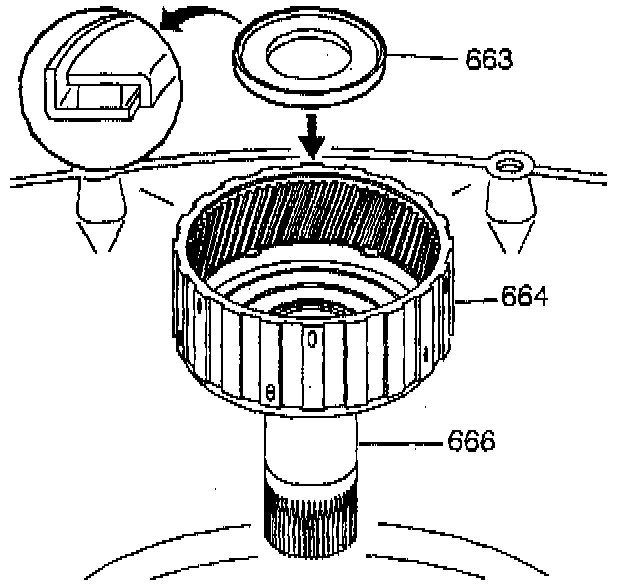

1. Install the input internal gear and shaft assembly into the sun gear shell. Index the shaft spline into the reaction carrier.
2. Install the input carrier shaft bearing thrust assembly.
