Inner Manual Linkage Removal

REMOVAL PROCEDURE

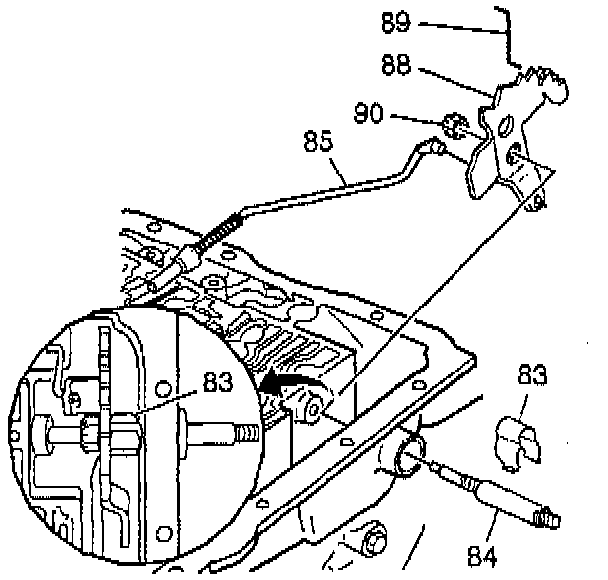

1. Remove the following parts: hex head nut and the manual valve link; inside detent lever and the parking lock actuator assembly; manual shaft retainer and the manual shaft.

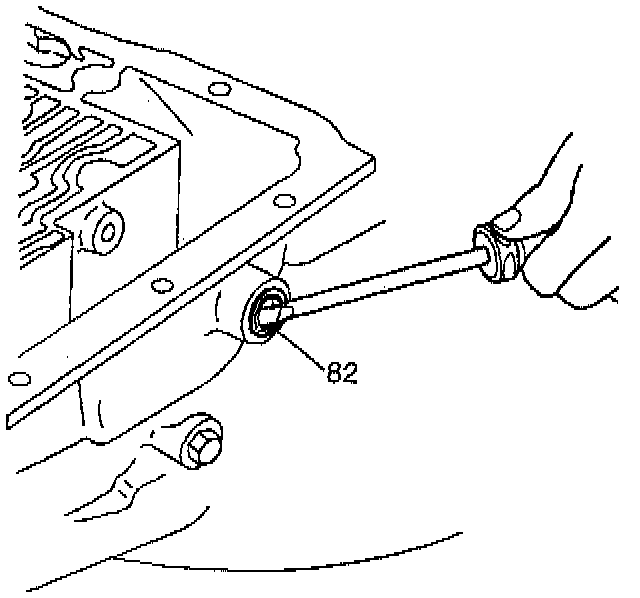

2. Remove the manual shaft seal with a screwdriver.

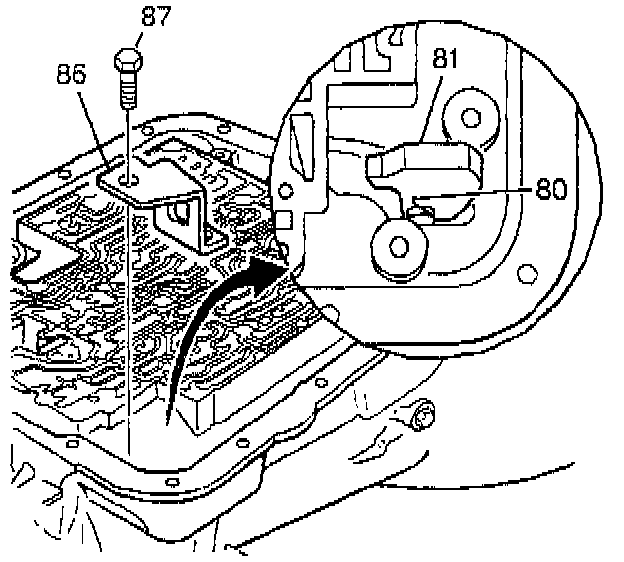

3. Remove the following components:
^ The parking lock bracket bolt
^ The parking lock bracket
