Inner Manual Linkage Installation

INSTALLATION PROCEDURE

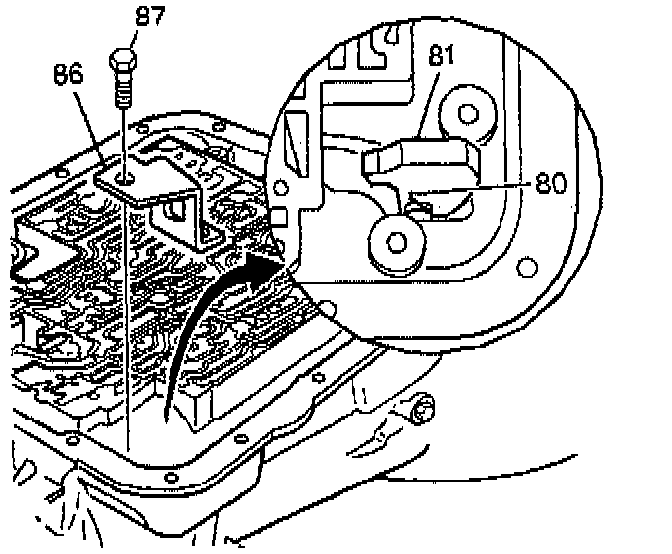

1. Install the parking lock bracket.
- Tighten the parking lock bracket bolt to 31 Nm (23 ft. lbs.).

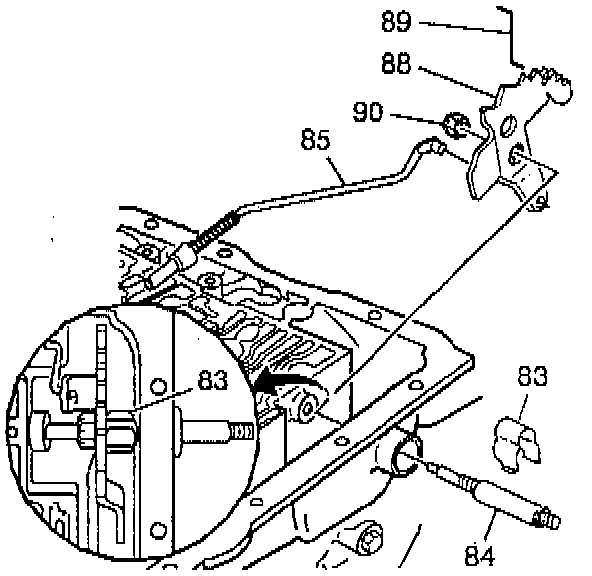

2. Install the following items:
^ The inside detent lever
^ Parking lock actuator assembly
^ The manual shaft
^ Manual shaft retainer
^ The hex head nut
- Tighten the nut to 31 Nm (23 ft. lbs.).
