2-4 Servo Pin Length Check #1

INSTALLATION PROCEDURE
^ Tools Required:
- J 33037 2-4 Band Apply Pin Tool

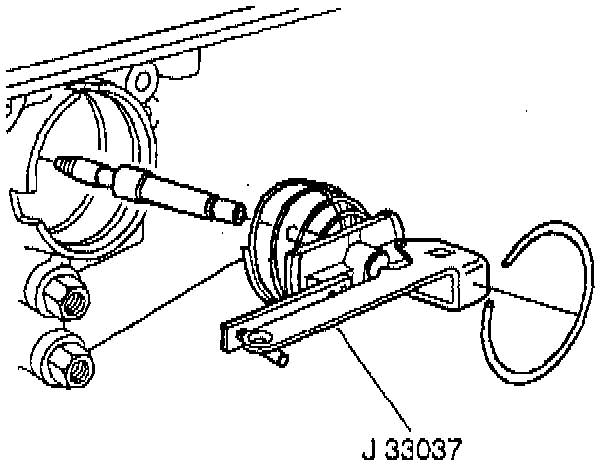

1. Install the band apply pin and the band apply pin tool.
2. Install the servo cover retaining ring to secure the tool.

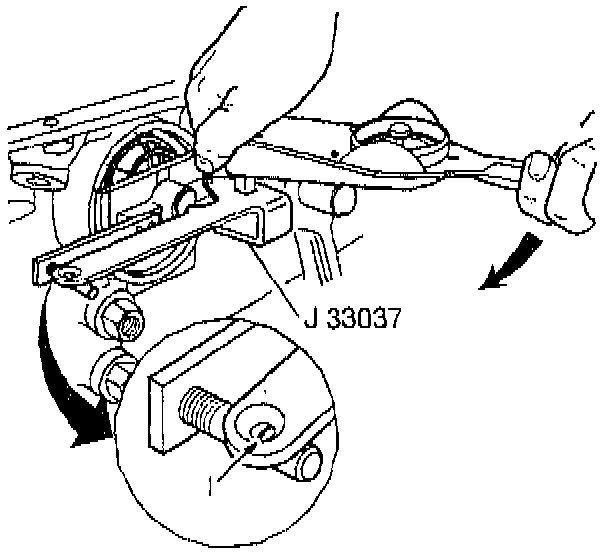

3. Apply 11 Nm (98 inch lbs.) torque. If the white line appears in the gage slot, the pin length is correct.
4. Use the pin selection chart to determine correct pin length if a new pin is needed.
